Description

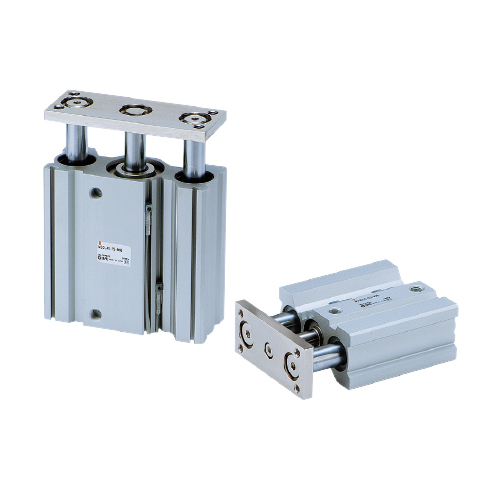

SMC MGQM20-20-M9N — MGQ Series. Compact Guide Cylinder. This code specifies 20mm bore, 20mm stroke, double acting.
Specification — MGQM20-20-M9N
| Bore |
20mm |
| Port thread |
M5X0.8(Φ12-16);Rc(Φ20-100) |
| Stroke |
20mm |
| Fluid |
Air |
| Action |
Double acting |
| Cushion |
Rubber bumper both ends |
| Min. operating pressure |
0.1 MPa |
| Max. operating pressure |
1.0 MPa |
| Proof pressure |
1.5 MPa |
| Fluid temp. min |
-10 ℃ |
| Fluid temp. max |
60 ℃ |
| Ambient temp. min |
-10 ℃ |
| Ambient temp. max |
60 ℃ |
| Lubrication |
Non-lube |
| Piston speed min |
50 mm/s |
| Piston speed max |
500 mm/s |
| Weight |
559 g |
Specification values above are for model code MGQM20-20-M9N as published by SMC. A change of one character in the suffix gives a different part, so order by the full code.
About the SMC MGQ series
- Guide-integrated air cylinder that realizes lateral load resistance and high-precision anti-rotation
- Suitable for stoppers and lifters in transfer lines
Supply from Korea
Genuine SMC, sourced through Korean distribution and shipped from Korea by FedEx International Priority with export packing and commercial documents. Need a different stroke, switch or suffix? Send the full model code and quantity and we will quote it.
