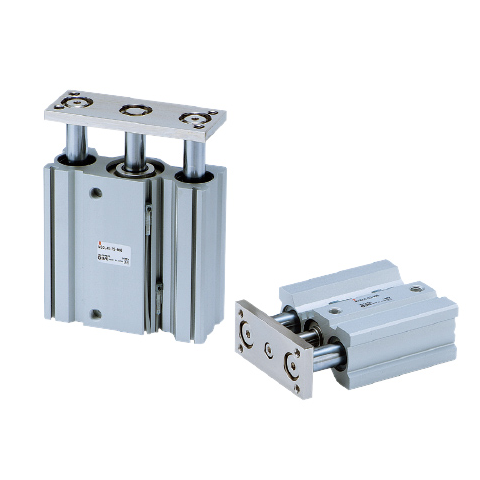

Name: SMC MGQ Series. Compact Guide Cylinder, MGQM25-25-A93L
Brand: SMC
SKU: MGQM25-25-A93L
Price: 226.43 USD
Availability: InStock

SMC MGQ Series. Compact Guide Cylinder, MGQM25-25-A93L

VendorSMC

Description

OVERVIEW

The solution for a linear-actuator subject to high loads. Ideal for material handling applications. Two basic models include a self-lubricating slide bushing and a linear ball bearing style. The 100mm slide bushing model can stop a load of 3,000 lbs. traveling at 55ft/min, or smoothly lift a centered load of 1,000 lbs. with a 40% safety factor. The overall package is very compact, and pre-tapped mounting holes ensure easy attachment of fixtures. Mounts on side or bottom. The MGQ offers bore sizes from 12 to 100mm and is switch capable.

Guide-integrated air cylinder that realizes lateral load resistance and high-precision anti-rotation
Suitable for stoppers and lifters in transfer lines

Specification item	model symbol	Specification information
bearing type	M	plain bearing
tube inner diameter	25	tube inner diameter 25mm
Types of port screws	-	M5X0.8(Φ12-16);Rc(Φ20-100)
cylinder stroke	25	cylinder stroke 25mm
auto switch	A93L	Reed auto switch, grommet, with light, 2-wire type, side entry, lead wire 3 m, applied voltage: DC24V, AC100V
Auto switch additional symbol	-	2 with or without
Custom made specifications	-	standard

Specification — MGQM25-25-A93L

Bore	25mm
Port thread	M5X0.8(Φ12-16);Rc(Φ20-100)
Stroke	25mm
Fluid	Air
Action	Double acting
Cushion	Rubber bumper both ends
Min. operating pressure	0.1 MPa
Max. operating pressure	1.0 MPa
Proof pressure	1.5 MPa
Fluid temp. min	-10 ℃
Fluid temp. max	60 ℃
Ambient temp. min	-10 ℃
Ambient temp. max	60 ℃
Lubrication	Non-lube
Piston speed min	50 mm/s
Piston speed max	500 mm/s
Weight	996 g

Specification values above are for model code MGQM25-25-A93L as published by SMC. A change of one character in the suffix gives a different part, so order by the full code.
