Description

OVERVIEW

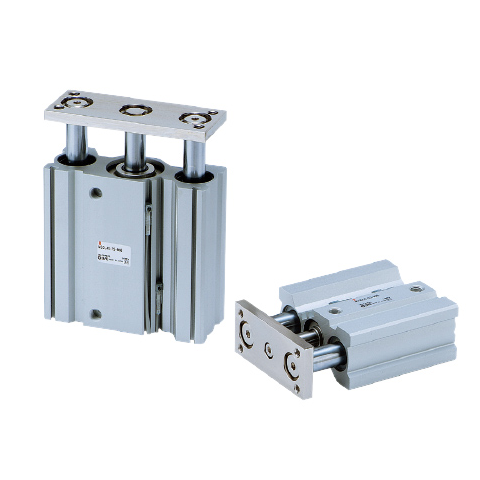

The solution for a linear-actuator subject to high loads. Ideal for material handling applications. Two basic models include a self-lubricating slide bushing and a linear ball bearing style. The 100mm slide bushing model can stop a load of 3,000 lbs. traveling at 55ft/min, or smoothly lift a centered load of 1,000 lbs. with a 40% safety factor. The overall package is very compact, and pre-tapped mounting holes ensure easy attachment of fixtures. Mounts on side or bottom. The MGQ offers bore sizes from 12 to 100mm and is switch capable.

Guide-integrated air cylinder that realizes lateral load resistance and high-precision anti-rotation
Suitable for stoppers and lifters in transfer lines

Specification item	model symbol	Specification information
bearing type	M	plain bearing
tube inner diameter	25	tube inner diameter 25mm
Types of port screws	-	M5X0.8(Φ12-16);Rc(Φ20-100)
cylinder stroke	40	cylinder stroke 40mm
auto switch	A93	Reed auto switch, grommet, with light, 2-wire type, lateral entry, lead wire 0.5 m, applied voltage: DC24V, AC100V
Auto switch additional symbol	-	2 with or without
Custom made specifications	-	standard

Product form

OVERVIEW The solution for a linear-actuator subject to high loads. Ideal for material handling applications. Two basic models include a... Read more

SKU: MGQM25-40-A93

$184.03 Excl. VAT

Ships within 5–10 business days

Ships from South Korea

Export packing available

Worldwide shipping

Secure payments Paypal

Need a bulk or multi-brand quotation?

Get quotes for 10+ items across SMC, NSK, LS Electric and 900+
Korean brands at ProSource MRO — operated by the same team.

Request a Bulk Quote →

Description

OVERVIEW

The solution for a linear-actuator subject to high loads. Ideal for material handling applications. Two basic models include a self-lubricating slide bushing and a linear ball bearing style. The 100mm slide bushing model can stop a load of 3,000 lbs. traveling at 55ft/min, or smoothly lift a centered load of 1,000 lbs. with a 40% safety factor. The overall package is very compact, and pre-tapped mounting holes ensure easy attachment of fixtures. Mounts on side or bottom. The MGQ offers bore sizes from 12 to 100mm and is switch capable.

Guide-integrated air cylinder that realizes lateral load resistance and high-precision anti-rotation
Suitable for stoppers and lifters in transfer lines

Specification item	model symbol	Specification information
bearing type	M	plain bearing
tube inner diameter	25	tube inner diameter 25mm
Types of port screws	-	M5X0.8(Φ12-16);Rc(Φ20-100)
cylinder stroke	40	cylinder stroke 40mm
auto switch	A93	Reed auto switch, grommet, with light, 2-wire type, lateral entry, lead wire 0.5 m, applied voltage: DC24V, AC100V
Auto switch additional symbol	-	2 with or without
Custom made specifications	-	standard
