Description

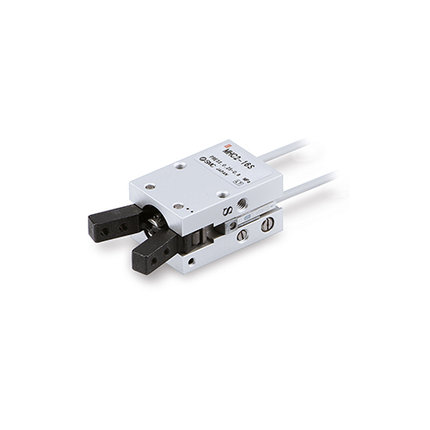

SMC MHC2-10S — MHC2 Series, Air Gripper, Angular Style. This code specifies 10mm bore, without auto switch.
Specification — MHC2-10S
| Bore |
10mm |
| Auto switch |
Without auto switch |
| Fluid |
Air |
| Port size |
M3X0.5 |
| Port thread |
M |
| Min. operating pressure |
0.25 MPa |
| Max. operating pressure |
0.6 MPa |
| Lubrication |
Non-lube |
| Weight |
39 g |
Specification values above are for model code MHC2-10S as published by SMC. A change of one character in the suffix gives a different part, so order by the full code.
How to order
About the SMC MHC2 series
- Bore sizes: 6, 10, 16, 20, 25 mm
- Built-in throttle for speed adjustment
- Option for NSF-H1, food grade lubricant
- Auto switch capable
Supply from Korea
Genuine SMC, sourced through Korean distribution and shipped from Korea by FedEx International Priority with export packing and commercial documents. Need a different stroke, switch or suffix? Send the full model code and quantity and we will quote it.
