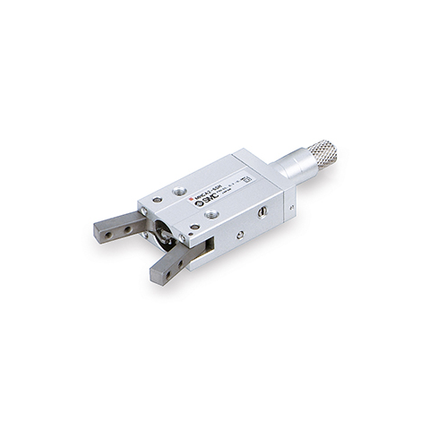

SMC MHCA2 Air Gripper Series, Fulcrum Opening Type, Compact Standard, MHCA2-6SH

Description

OVERVIEW



The finger opening angle ranges from 30° to -10° making the MHCA suitable for workpieces of odd shapes and where space is too tight to accommodate a parallel type gripper.

  • Bore Size: 6mm
  • Built-in throttle for speed adjustment
  • Option for NSF-H1, food grade lubricant





Applicable Auto Switches



Type Special function Electrical entry Indicator light Wiring (Output) Load voltage Auto switch model Lead wire length [m] Pre-wired
 connector		 Applicable load
DC AC Perpendicular In-line 0.5 (Nil) 1 (M) 3 (L) 5 (Z)
Solid state auto switch - Grommet Yes 3-wire (NPN) 24 V 5 V, 12 V - M9NV M9N O O O o o IC Circuit Relay, PLC
3-wire (PNP) M9PV M9P O O O o o
2-wire 12 V M9BV M9B O O O o o -
Diagnostic indication
(2-color indicator)		 3-wire (NPN) 5 V, 12 V M9NWV M9NW O O O o o IC Circuit
3-wire (PNP) M9PWV M9PW O O O o o
2-wire 12 V M9BWV M9BW O O O o o -
Water resistant
(2-color indicator)		 3-wire (NPN) 5 V, 12 V M9NAV** M9NA** o o O o o IC Circuit
3-wire (PNP) M9PAV** M9PA** o o O o o
2-wire 12 V M9BAV** M9BA** o o O o o -

Product form

OVERVIEW The finger opening angle ranges from 30° to -10° making the MHCA suitable for workpieces of odd shapes and... Read more

SKU: MHCA2-6SH

$94.09 Excl. VAT

    • Quick delivery worldwide
    • Satisfied or refunded
    • Secure payments Paypal

      Description

      OVERVIEW



      The finger opening angle ranges from 30° to -10° making the MHCA suitable for workpieces of odd shapes and where space is too tight to accommodate a parallel type gripper.

      • Bore Size: 6mm
      • Built-in throttle for speed adjustment
      • Option for NSF-H1, food grade lubricant





      Applicable Auto Switches



      Type Special function Electrical entry Indicator light Wiring (Output) Load voltage Auto switch model Lead wire length [m] Pre-wired
       connector      		 Applicable load
      DC AC Perpendicular In-line 0.5 (Nil) 1 (M) 3 (L) 5 (Z)
      Solid state auto switch - Grommet Yes 3-wire (NPN) 24 V 5 V, 12 V - M9NV M9N O O O o o IC Circuit Relay, PLC
      3-wire (PNP) M9PV M9P O O O o o
      2-wire 12 V M9BV M9B O O O o o -
      Diagnostic indication
      (2-color indicator)      		 3-wire (NPN) 5 V, 12 V M9NWV M9NW O O O o o IC Circuit
      3-wire (PNP) M9PWV M9PW O O O o o
      2-wire 12 V M9BWV M9BW O O O o o -
      Water resistant
      (2-color indicator)      		 3-wire (NPN) 5 V, 12 V M9NAV** M9NA** o o O o o IC Circuit
      3-wire (PNP) M9PAV** M9PA** o o O o o
      2-wire 12 V M9BAV** M9BA** o o O o o -
