SMC MHK2 Series, Air Gripper, Wedge Cam Operated Slide Guide, MHK2-16D1S-M9BL

Description

OVERVIEW

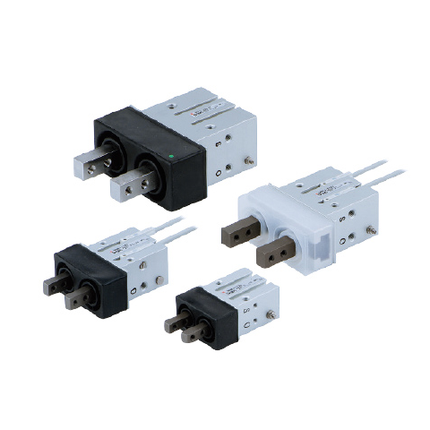

The series MHK2 grippers utilize a wedge cam design to minimize their overall size, allow no lateral vibration along stroke direction once the workpiece is held, while retaining a high holding force. Available in single acting (N.C., N.O.) and double acting as well as with a long stroke option.



  • Bore sizes: 12, 16, 20, 25 mm
  • Built-in adjustment needle for finger speed
  • Dust covers: chloroprene rubber, fluororubber, silicone rubber
  • High repeatability: ±0.01 mm
  • Auto switch capable
  • Option for NSF-H1, food grade lubricant





Applicable Auto Switches



Type Special function Electrical entry Indicator light Wiring (Output) Load voltage Auto switch model Lead wire length [m] Pre-wired
 connector		 Applicable load
DC AC Perpendicular In-line 0.5 (Nil) 1 (M) 3 (L) 5 (Z)
Solid state auto switch - Grommet Yes 3-wire (NPN) 24 V 5 V, 12 V - M9NV M9N O O O o o IC Circuit Relay, PLC
3-wire (PNP) M9PV M9P O O O o o
2-wire 12 V M9BV M9B O O O o o -
Diagnostic indication
(2-color indicator)		 3-wire (NPN) 5 V, 12 V M9NWV M9NW O O O o o IC Circuit
3-wire (PNP) M9PWV M9PW O O O o o
2-wire 12 V M9BWV M9BW O O O o o -
Water resistant
(2-color indicator)		 3-wire (NPN) 5 V, 12 V M9NAV** M9NA** o o O o o IC Circuit
3-wire (PNP) M9PAV** M9PA** o o O o o
2-wire 12 V M9BAV** M9BA** o o O o o -








Product form

OVERVIEW The series MHK2 grippers utilize a wedge cam design to minimize their overall size, allow no lateral vibration along... Read more

SKU: MHK2-16D1S-M9BL

$396.43 Excl. VAT

    • Quick delivery worldwide
    • Satisfied or refunded
    • Secure payments Paypal
    • Shipped today? Order within: Nov 26, 2024 17:00:00 +0900

    Description

    OVERVIEW



    The series MHK2 grippers utilize a wedge cam design to minimize their overall size, allow no lateral vibration along stroke direction once the workpiece is held, while retaining a high holding force. Available in single acting (N.C., N.O.) and double acting as well as with a long stroke option.



    • Bore sizes: 12, 16, 20, 25 mm
    • Built-in adjustment needle for finger speed
    • Dust covers: chloroprene rubber, fluororubber, silicone rubber
    • High repeatability: ±0.01 mm
    • Auto switch capable
    • Option for NSF-H1, food grade lubricant





    Applicable Auto Switches



    Type Special function Electrical entry Indicator light Wiring (Output) Load voltage Auto switch model Lead wire length [m] Pre-wired
     connector    		 Applicable load
    DC AC Perpendicular In-line 0.5 (Nil) 1 (M) 3 (L) 5 (Z)
    Solid state auto switch - Grommet Yes 3-wire (NPN) 24 V 5 V, 12 V - M9NV M9N O O O o o IC Circuit Relay, PLC
    3-wire (PNP) M9PV M9P O O O o o
    2-wire 12 V M9BV M9B O O O o o -
    Diagnostic indication
    (2-color indicator)    		 3-wire (NPN) 5 V, 12 V M9NWV M9NW O O O o o IC Circuit
    3-wire (PNP) M9PWV M9PW O O O o o
    2-wire 12 V M9BWV M9BW O O O o o -
    Water resistant
    (2-color indicator)    		 3-wire (NPN) 5 V, 12 V M9NAV** M9NA** o o O o o IC Circuit
    3-wire (PNP) M9PAV** M9PA** o o O o o
    2-wire 12 V M9BAV** M9BA** o o O o o -
