Description

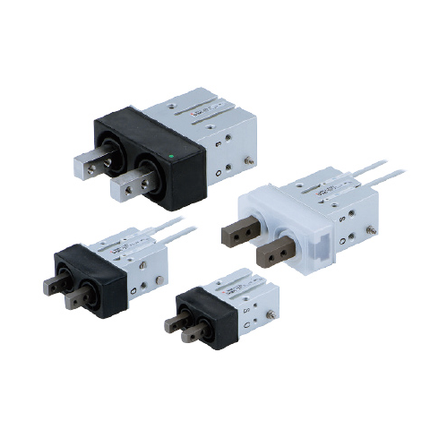

SMC MHKL2-12SS — MHK2 Series, Air Gripper, Wedge Cam Operated Slide Guide. This code specifies 12mm bore, without auto switch.
Specification — MHKL2-12SS
| Bore |
12mm |
| Auto switch |
Without auto switch |
| Fluid |
Air |
| Port thread |
M |
| Min. operating pressure |
0.25 MPa |
| Max. operating pressure |
0.6 MPa |
| Lubrication |
Non-lube |
| Weight |
105 g |
Specification values above are for model code MHKL2-12SS as published by SMC. A change of one character in the suffix gives a different part, so order by the full code.
How to order
About the SMC MHK2 series
- Bore sizes: 12, 16, 20, 25 mm
- Built-in adjustment needle for finger speed
- Dust covers: chloroprene rubber, fluororubber, silicone rubber
- High repeatability: ±0.01 mm
- Auto switch capable
- Option for NSF-H1, food grade lubricant
Supply from Korea
Genuine SMC, sourced through Korean distribution and shipped from Korea by FedEx International Priority with export packing and commercial documents. Need a different stroke, switch or suffix? Send the full model code and quantity and we will quote it.
