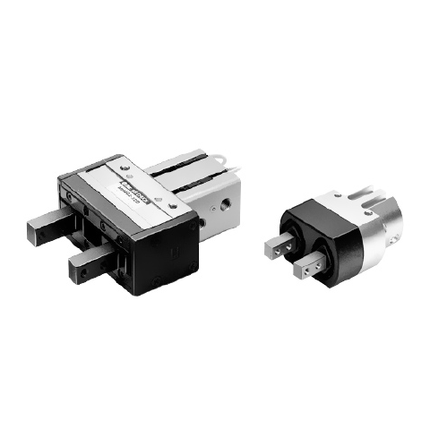

SMC MHQG2 Series, Parallel Air Gripper, High Rigidity, MHQG2-32D-M9BL

Description

OVERVIEW



The MHQG2, high rigidity gripper is avaialble in both single and double acting types.

  • Bore sizes: 32, 40 mm
  • Auto switch capable



Specifications

Fluid Air
Operating pressure Double acting 0.1 to 0.6 MPa
Single acting Normally open ?€
Normally closed 0.25 to 0.6 MPa
Ambient and fluid temperature ??0 to 60°C
Repeatability ø32, 40: ±0.02 mm
Max. operating frequency ø32, 40: 60 c.p.m
Lubrication Not required
Operating system Double acting, Single acting
Auto switch (Option) * Solid state auto switch: D-M9N(V), D-M9P(V), D-M9B(V), D-Y59 A , D-Y69 A



Model

Operating system Model Cylinder bore (mm) Gripping force Note 1) (Effective value) N Opening/Closing stroke (mm) Note 2) Weight (g)
Double acting MHQG2-32D 32 External grip: 88 Internal grip: 139 20 1100
MHQG2-40D 40 External grip: 158 Internal grip: 247 28 1940
Single acting Normally open MHQG2-32S 32 69 20 1110
MHQG2-40S 40 130 28 1960
Normally closed MHQG2-32C 32 127 20 1110
MHQG2-40C 40 227 28 1960

Note 1) Values at the pressure of 0.5 MPa. Double acting is compatible with both external and internal gripping forces, while single acting and  normally  open  external  gripping  force, and single acting and normally closed internal gripping force.

Note 2) Values excluding weight of auto switch.






Product form

OVERVIEW The MHQG2, high rigidity gripper is avaialble in both single and double acting types. Bore sizes: 32, 40 mm... Read more

SKU: MHQG2-32D-M9BL

$536.81 Excl. VAT

    • Quick delivery worldwide
    • Satisfied or refunded
    • Secure payments Paypal
    • Shipped today? Order within: Nov 27, 2024 17:00:00 +0900

    Description

    OVERVIEW



    The MHQG2, high rigidity gripper is avaialble in both single and double acting types.

    • Bore sizes: 32, 40 mm
    • Auto switch capable



    Specifications

    Fluid Air
    Operating pressure Double acting 0.1 to 0.6 MPa
    Single acting Normally open ?€
    Normally closed 0.25 to 0.6 MPa
    Ambient and fluid temperature ??0 to 60°C
    Repeatability ø32, 40: ±0.02 mm
    Max. operating frequency ø32, 40: 60 c.p.m
    Lubrication Not required
    Operating system Double acting, Single acting
    Auto switch (Option) * Solid state auto switch: D-M9N(V), D-M9P(V), D-M9B(V), D-Y59 A , D-Y69 A



    Model

    Operating system Model Cylinder bore (mm) Gripping force Note 1) (Effective value) N Opening/Closing stroke (mm) Note 2) Weight (g)
    Double acting MHQG2-32D 32 External grip: 88 Internal grip: 139 20 1100
    MHQG2-40D 40 External grip: 158 Internal grip: 247 28 1940
    Single acting Normally open MHQG2-32S 32 69 20 1110
    MHQG2-40S 40 130 28 1960
    Normally closed MHQG2-32C 32 127 20 1110
    MHQG2-40C 40 227 28 1960

    Note 1) Values at the pressure of 0.5 MPa. Double acting is compatible with both external and internal gripping forces, while single acting and  normally  open  external  gripping  force, and single acting and normally closed internal gripping force.

    Note 2) Values excluding weight of auto switch.
