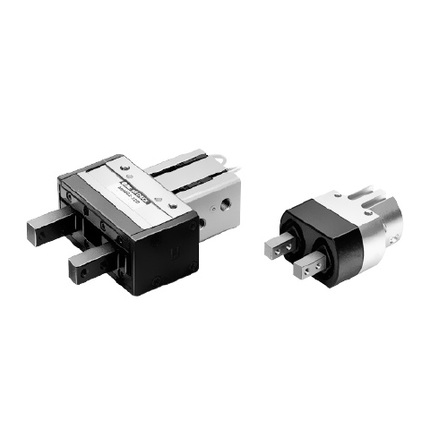

SMC MHQJ2 Series, Parallel Air Gripper, with Dust Cover, MHQJ2-25D-M9NL

Description

OVERVIEW



The MHQJ2 gripper is available in three dust cover materials: standard rubber, fluororubber and silicone rubber.

  • Bore sizes: 10, 16, 20, 25 mm
  • Auto switch capable



Specifications

Fluid Air
Operating pressure Double acting 0.1 to 0.6 MPa
Single acting Normally open 0.25 to 0.6 MPa
Normally closed
Ambient and fluid temperature ??0 to 60°C
Repeatability ±0.01 mm
Max. operating frequency 180 c.p.m
Lubrication Not required
Operating system Double acting, Single acting
Auto switch (Option) * Solid state auto switch: D-M9N(V), D-M9P(V), D-M9B(V)



Model

Operating system Model Cylinder bore (mm) Note 1) Gripping force (Effective value) N Opening/Closing stroke (mm) Weight (g)
Double acting MHQJ2-10D 10 11 4 90
MHQJ2-16D 16 34 6 180
MHQJ2-20D 20 42 10 340
MHQJ2-25D 25 63 14 640
Single acting Normally open MHQJ2-10S 10 7.8 4 90
MHQJ2-16S 16 26 6 181
MHQJ2-20S 20 33 10 342
MHQJ2-25S 25 49 14 643
Normally closed MHQJ2-10C 10 7.8 4 90
MHQJ2-16C 16 26 6 181
MHQJ2-20C 20 33 10 342
MHQJ2-25C 25 49 14 643

Note 1) Values at the pressure of 0.5 MPa. Double acting is compatible with both external and internal gripping forces, while single acting and  normally  open  external  gripping  force, and single acting and normally closed internal gripping force.

Note 2) Values excluding weight of auto switch






Product form

OVERVIEW The MHQJ2 gripper is available in three dust cover materials: standard rubber, fluororubber and silicone rubber. Bore sizes: 10,... Read more

SKU: MHQJ2-25D-M9NL

$537.30 Excl. VAT

    • Quick delivery worldwide
    • Satisfied or refunded
    • Secure payments Paypal
    • Shipped today? Order within: Nov 27, 2024 17:00:00 +0900

    Description

    OVERVIEW



    The MHQJ2 gripper is available in three dust cover materials: standard rubber, fluororubber and silicone rubber.

    • Bore sizes: 10, 16, 20, 25 mm
    • Auto switch capable



    Specifications

    Fluid Air
    Operating pressure Double acting 0.1 to 0.6 MPa
    Single acting Normally open 0.25 to 0.6 MPa
    Normally closed
    Ambient and fluid temperature ??0 to 60°C
    Repeatability ±0.01 mm
    Max. operating frequency 180 c.p.m
    Lubrication Not required
    Operating system Double acting, Single acting
    Auto switch (Option) * Solid state auto switch: D-M9N(V), D-M9P(V), D-M9B(V)



    Model

    Operating system Model Cylinder bore (mm) Note 1) Gripping force (Effective value) N Opening/Closing stroke (mm) Weight (g)
    Double acting MHQJ2-10D 10 11 4 90
    MHQJ2-16D 16 34 6 180
    MHQJ2-20D 20 42 10 340
    MHQJ2-25D 25 63 14 640
    Single acting Normally open MHQJ2-10S 10 7.8 4 90
    MHQJ2-16S 16 26 6 181
    MHQJ2-20S 20 33 10 342
    MHQJ2-25S 25 49 14 643
    Normally closed MHQJ2-10C 10 7.8 4 90
    MHQJ2-16C 16 26 6 181
    MHQJ2-20C 20 33 10 342
    MHQJ2-25C 25 49 14 643

    Note 1) Values at the pressure of 0.5 MPa. Double acting is compatible with both external and internal gripping forces, while single acting and  normally  open  external  gripping  force, and single acting and normally closed internal gripping force.

    Note 2) Values excluding weight of auto switch
