Description

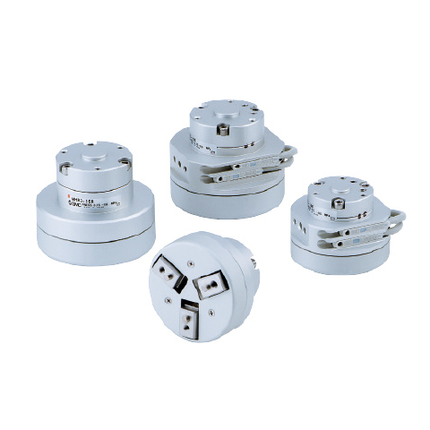

SMC MHR3-15R — MHR3 Series, Air Gripper, 3 Finger, Rotary Actuator. This code specifies double acting, without auto switch.
Specification — MHR3-15R
| Auto switch |
Without auto switch |
| Fluid |
Air |
| Port thread |
M |
| Action |
Double acting |
| Min. operating pressure |
0.15 MPa |
| Max. operating pressure |
0.6 MPa |
| Lubrication |
Non-lube |
| Weight |
225 g |
Specification values above are for model code MHR3-15R as published by SMC. A change of one character in the suffix gives a different part, so order by the full code.
How to order
About the SMC MHR3 series
- Double acting, rotary actuated
- Bore sizes: 10, 15 mm
- High repeatability: ±0.01 mm
- Mounting: axial, lateral and vertical sides
- Auto switch capable
Supply from Korea
Genuine SMC, sourced through Korean distribution and shipped from Korea by FedEx International Priority with export packing and commercial documents. Need a different stroke, switch or suffix? Send the full model code and quantity and we will quote it.
