Description

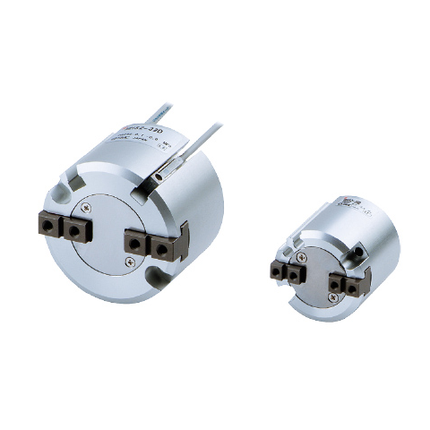

SMC MHS2-20D — MHS2 Series, Air Gripper, 2 Finger, Parallel Style. This code specifies 20mm bore, double acting, without auto switch.
Specification — MHS2-20D
| Bore |
20mm |
| Auto switch |
Without auto switch |
| Fluid |
Air |
| Port thread |
M |
| Action |
Double acting |
| Min. operating pressure |
0.2 MPa |
| Max. operating pressure |
0.6 MPa |
| Lubrication |
Non-lube |
| Weight |
96 g |
Specification values above are for model code MHS2-20D as published by SMC. A change of one character in the suffix gives a different part, so order by the full code.
How to order
About the SMC MHS2 series
- Bore sizes: 16, 20, 25, 32, 40, 50, 63 mm
- Mounting: tapped and through holes
- High repeatability: ±0.01 mm
- Auto switch capable
- Option for NSF-H1, food grade lubricant
Supply from Korea
Genuine SMC, sourced through Korean distribution and shipped from Korea by FedEx International Priority with export packing and commercial documents. Need a different stroke, switch or suffix? Send the full model code and quantity and we will quote it.
