Description

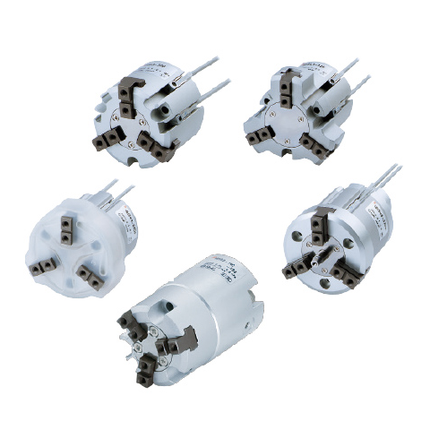

SMC MHS3-25D-X4 — MHS3 Series, Air Gripper, 3 Finger, Parallel Style. This code specifies 25mm bore, double acting, without auto switch.
Specification — MHS3-25D-X4
| Bore |
25mm |
| Auto switch |
Without auto switch |
| Fluid |
Air |
| Action |
Double acting |
| Min. operating pressure |
0.2 MPa |
| Max. operating pressure |
0.6 MPa |
| Lubrication |
Non-lube |
| Weight |
140 g |
Specification values above are for model code MHS3-25D-X4 as published by SMC. A change of one character in the suffix gives a different part, so order by the full code.
How to order
About the SMC MHS3 series
- Double acting, wedge cam
- High repeatability: ±0.01 mm
- Bore sizes: 16, 20, 25, 32, 40, 50, 63, 80, 100, 125 mm
- Auto switch capable
- Option for NSF-H1, food grade lubricant
Supply from Korea
Genuine SMC, sourced through Korean distribution and shipped from Korea by FedEx International Priority with export packing and commercial documents. Need a different stroke, switch or suffix? Send the full model code and quantity and we will quote it.
