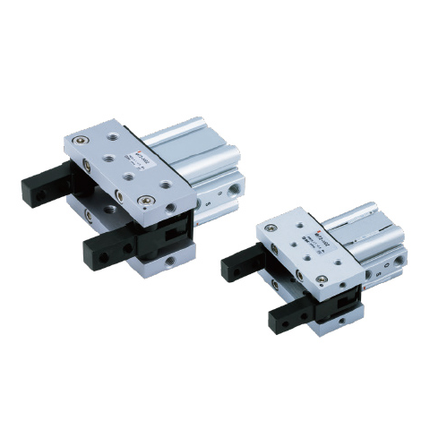

SMC MHT2 Air Gripper Series, Toggle Type, MHT2-32DZ-M9BW

Description

OVERVIEW




  • Small auto switches can be attached to the 4 sides with a new cylinder body.
  • Strong and stable gripping force can be obtained with the toggle mechanism.
  • Maintain work even when air is blocked (safety measures)





Applicable Auto Switches



Type Special function Electrical entry Indicator light Wiring (Output) Load voltage Auto switch model Lead wire length (m)* Pre-wired connector Applicable load
DC AC Electrical entry direction 0.5 (Nil) 1 (M) 3 (L) 5 (Z) None (N)
Perpendicular In-line
Solid state auto switch - Grommet Yes 3-wire (NPN) 24 V 5 V,12 V - M9NV M9N O O O o - o IC circuit Relay, PLC
3-wire (PNP) M9PV M9P O O O o - o
2-wire M9BV M9B O O O o - o -
Diagnosis
(2-color indicator)		 3-wire (NPN) 5 V,12 V M9NWV M9NW O O O o - o IC circuit
3-wire (PNP) M9PWV M9PW O O O o - o
2-wire 12 V M9BWV M9BW O O O o - o -
Water resistant (2-color indicator) 3-wire (NPN) 5 V,12 V M9NAV*1 M9NA*1 o o O o - o IC circuit
3-wire (PNP) M9PAV*1 M9PA*1 o o O o - o
2-wire 12 V M9BAV*1 M9BA*1 o o O o - o -
Reed auto switch - Grommet Yes 3-wire (NPN equivalent) - 5 V - A96V A96 O - O - - - IC circuit -
2-wire 24 V 12 V 100 V A93V*2 A93 O O O O - - - Relay, PLC
No 5 V,12 V 100 V or less A90V A90 O - O - - - IC circuit
Product form

OVERVIEW Small auto switches can be attached to the 4 sides with a new cylinder body. Strong and stable gripping... Read more

SKU: MHT2-32DZ-M9BW

$406.08 Excl. VAT

    • Quick delivery worldwide
    • Satisfied or refunded
    • Secure payments Paypal
    • Shipped today? Order within: Nov 27, 2024 17:00:00 +0900

    Description

    OVERVIEW




    • Small auto switches can be attached to the 4 sides with a new cylinder body.
    • Strong and stable gripping force can be obtained with the toggle mechanism.
    • Maintain work even when air is blocked (safety measures)





    Applicable Auto Switches



    Type Special function Electrical entry Indicator light Wiring (Output) Load voltage Auto switch model Lead wire length (m)* Pre-wired connector Applicable load
    DC AC Electrical entry direction 0.5 (Nil) 1 (M) 3 (L) 5 (Z) None (N)
    Perpendicular In-line
    Solid state auto switch - Grommet Yes 3-wire (NPN) 24 V 5 V,12 V - M9NV M9N O O O o - o IC circuit Relay, PLC
    3-wire (PNP) M9PV M9P O O O o - o
    2-wire M9BV M9B O O O o - o -
    Diagnosis
    (2-color indicator)    		 3-wire (NPN) 5 V,12 V M9NWV M9NW O O O o - o IC circuit
    3-wire (PNP) M9PWV M9PW O O O o - o
    2-wire 12 V M9BWV M9BW O O O o - o -
    Water resistant (2-color indicator) 3-wire (NPN) 5 V,12 V M9NAV*1 M9NA*1 o o O o - o IC circuit
    3-wire (PNP) M9PAV*1 M9PA*1 o o O o - o
    2-wire 12 V M9BAV*1 M9BA*1 o o O o - o -
    Reed auto switch - Grommet Yes 3-wire (NPN equivalent) - 5 V - A96V A96 O - O - - - IC circuit -
    2-wire 24 V 12 V 100 V A93V*2 A93 O O O O - - - Relay, PLC
    No 5 V,12 V 100 V or less A90V A90 O - O - - - IC circuit
