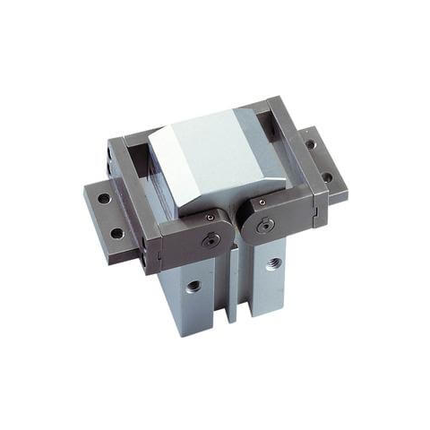

SMC MHW2 Air Gripper Series,180 Angular, Rack & Pinion Style, MHW2-40D1

Description

OVERVIEW



The 180° angular opening fingers can rotate back perpendicular to the gripper body for space saving and low clearance applications. While the fingers are in the 180° retracted position, the MHW2 can move in an X-Y plane to the work location. Its unique seal design and construction protects from dust exposure and allows for a shorter overall body length.

  • Bore sizes: 20, 25, 32, 40, 50 mm
  • Auto switch capable
  • Option for NSF-H1, food grade lubricant





Applicable Auto Switches



Type Special function Electrical entry Indicator light Wiring (Output) Load voltage Auto switch model Lead wire length (m)* Pre-wired connector Applicable load
Electrical entry direction 0.5 (Nil) 1 (M) 3 (L) 5 (Z)
DC AC Perpendicular In-line
Solid state auto switch - Grommet Yes 3-wire (NPN) 24V 5V,12V ??/td> M9NV M9N O O O o o IC Circuit Relay, PLC
3-wire (PNP) M9PV M9P O O O o o
2-wire 12V M9BV M9B O O O o o -
Diagnosis (2-color indication) 3-wire (NPN) 5V,12V M9NWV M9NW O O O o o IC Circuit
3-wire (PNP) M9PWV M9PW O O O o o
2-wire 12V M9BWV M9BW O O O o o -
Water resistant (2-color indicator) 3-wire (NPN) 5V,12V M9NAV** M9NA** o o O o o IC Circuit
3-wire (PNP) M9PAV** M9PA** o o O o o
2-wire 12V M9BAV** M9BA** o o O o o -
Product form

OVERVIEW The 180° angular opening fingers can rotate back perpendicular to the gripper body for space saving and low clearance... Read more

SKU: MHW2-40D1

$636.09 Excl. VAT

    • Quick delivery worldwide
    • Satisfied or refunded
    • Secure payments Paypal
    • Shipped today? Order within: Nov 27, 2024 17:00:00 +0900

    Description

    OVERVIEW



    The 180° angular opening fingers can rotate back perpendicular to the gripper body for space saving and low clearance applications. While the fingers are in the 180° retracted position, the MHW2 can move in an X-Y plane to the work location. Its unique seal design and construction protects from dust exposure and allows for a shorter overall body length.

    • Bore sizes: 20, 25, 32, 40, 50 mm
    • Auto switch capable
    • Option for NSF-H1, food grade lubricant





    Applicable Auto Switches



    Type Special function Electrical entry Indicator light Wiring (Output) Load voltage Auto switch model Lead wire length (m)* Pre-wired connector Applicable load
    Electrical entry direction 0.5 (Nil) 1 (M) 3 (L) 5 (Z)
    DC AC Perpendicular In-line
    Solid state auto switch - Grommet Yes 3-wire (NPN) 24V 5V,12V ??/td> M9NV M9N O O O o o IC Circuit Relay, PLC
    3-wire (PNP) M9PV M9P O O O o o
    2-wire 12V M9BV M9B O O O o o -
    Diagnosis (2-color indication) 3-wire (NPN) 5V,12V M9NWV M9NW O O O o o IC Circuit
    3-wire (PNP) M9PWV M9PW O O O o o
    2-wire 12V M9BWV M9BW O O O o o -
    Water resistant (2-color indicator) 3-wire (NPN) 5V,12V M9NAV** M9NA** o o O o o IC Circuit
    3-wire (PNP) M9PAV** M9PA** o o O o o
    2-wire 12V M9BAV** M9BA** o o O o o -
