Description

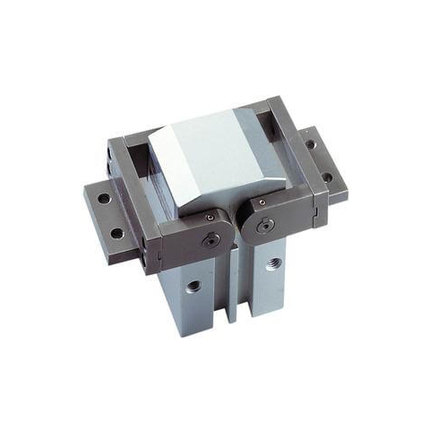

SMC MHW2-50D-X4 — MHW2 Air Gripper Series,180 Angular, Rack & Pinion Style. This code specifies 50mm bore, double acting, without auto switch.
Specification — MHW2-50D-X4
| Auto switch |
Without auto switch |
| Fluid |
Air |
| Action |
Double acting |
| Port size |
1/4 |
| Min. operating pressure |
0.15 MPa |
| Max. operating pressure |
0.7 MPa |
| Lubrication |
Non-lube |
| Weight |
5,000 g |
Specification values above are for model code MHW2-50D-X4 as published by SMC. A change of one character in the suffix gives a different part, so order by the full code.
How to order
Series features
- Bore sizes: 20, 25, 32, 40, 50 mm
- Auto switch capable
- Option for NSF-H1, food grade lubricant
Supply from Korea
Genuine SMC, sourced through Korean distribution and shipped from Korea by FedEx International Priority with export packing and commercial documents. Need a different stroke, switch or suffix? Send the full model code and quantity and we will quote it.
