Description

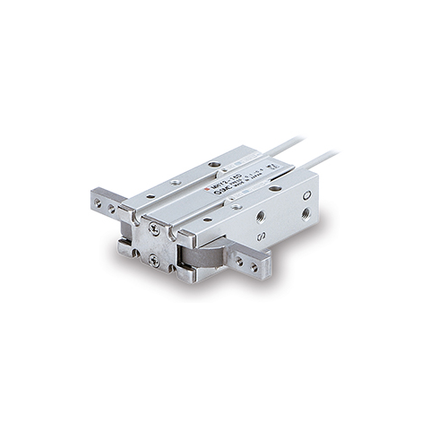

SMC MHY2-20D — MHY2 Air Gripper Series,180 Angular, Cam Style. This code specifies 20mm bore, double acting, without auto switch.
Specification — MHY2-20D
| Bore |
20mm |
| Auto switch |
Without auto switch |
| Fluid |
Air |
| Action |
Double acting |
| Port size |
M5X0.8 |
| Port thread |
M |
| Min. operating pressure |
0.1 MPa |
| Max. operating pressure |
0.6 MPa |
| Lubrication |
Non-lube |
| Weight |
320 g |
Specification values above are for model code MHY2-20D as published by SMC. A change of one character in the suffix gives a different part, so order by the full code.
How to order
Series features
- Bore sizes: 10, 16, 20, 25 mm
- Auto switch capable
- Option for NSF-H1, food grade lubricant
Supply from Korea
Genuine SMC, sourced through Korean distribution and shipped from Korea by FedEx International Priority with export packing and commercial documents. Need a different stroke, switch or suffix? Send the full model code and quantity and we will quote it.
