SMC MHY2 Air Gripper Series,180 Angular, Cam Style, MHY2-20D-M9BWLS

Description

OVERVIEW

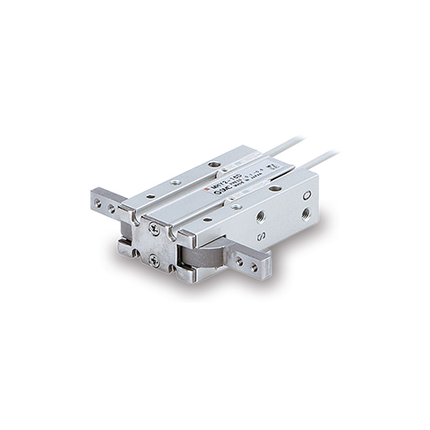

This compact 180° angular gripper uses a cam style mechanism for a reliable gripping force. Its fingers can rotate back perpendicular to the gripper body for space saving where vertical clearance is limited.

  • Bore sizes: 10, 16, 20, 25 mm
  • Auto switch capable
  • Option for NSF-H1, food grade lubricant





Applicable Auto Switches



Type Special function Electrical entry Indicator light Wiring (Output) Load voltage Auto switch model Lead wire length (m)* Pre-wired connector Applicable load
Electrical entry direction 0.5 (Nil) 1 (M) 3 (L) 5 (Z)
DC AC Perpendicular In-line
Solid state auto switch - Grommet Yes 3-wire (NPN) 24V 5V,12V ??/td> M9NV M9N O O O o o IC Circuit Relay, PLC
3-wire (PNP) M9PV M9P O O O o o
2-wire 12V M9BV M9B O O O o o -
Diagnosis (2-color indication) 3-wire (NPN) 5V,12V M9NWV M9NW O O O o o IC Circuit
3-wire (PNP) M9PWV M9PW O O O o o
2-wire 12V M9BWV M9BW O O O o o -
Water resistant (2-color indicator) 3-wire (NPN) 5V,12V M9NAV** M9NA** o o O o o IC Circuit
3-wire (PNP) M9PAV** M9PA** o o O o o
2-wire 12V M9BAV** M9BA** o o O o o -
Product form

OVERVIEW This compact 180° angular gripper uses a cam style mechanism for a reliable gripping force. Its fingers can rotate... Read more

SKU: MHY2-20D-M9BWLS

$318.87 Excl. VAT

    • Quick delivery worldwide
    • Satisfied or refunded
    • Secure payments Paypal

      Description

      OVERVIEW



      This compact 180° angular gripper uses a cam style mechanism for a reliable gripping force. Its fingers can rotate back perpendicular to the gripper body for space saving where vertical clearance is limited.

      • Bore sizes: 10, 16, 20, 25 mm
      • Auto switch capable
      • Option for NSF-H1, food grade lubricant





      Applicable Auto Switches



      Type Special function Electrical entry Indicator light Wiring (Output) Load voltage Auto switch model Lead wire length (m)* Pre-wired connector Applicable load
      Electrical entry direction 0.5 (Nil) 1 (M) 3 (L) 5 (Z)
      DC AC Perpendicular In-line
      Solid state auto switch - Grommet Yes 3-wire (NPN) 24V 5V,12V ??/td> M9NV M9N O O O o o IC Circuit Relay, PLC
      3-wire (PNP) M9PV M9P O O O o o
      2-wire 12V M9BV M9B O O O o o -
      Diagnosis (2-color indication) 3-wire (NPN) 5V,12V M9NWV M9NW O O O o o IC Circuit
      3-wire (PNP) M9PWV M9PW O O O o o
      2-wire 12V M9BWV M9BW O O O o o -
      Water resistant (2-color indicator) 3-wire (NPN) 5V,12V M9NAV** M9NA** o o O o o IC Circuit
      3-wire (PNP) M9PAV** M9PA** o o O o o
      2-wire 12V M9BAV** M9BA** o o O o o -
