Description

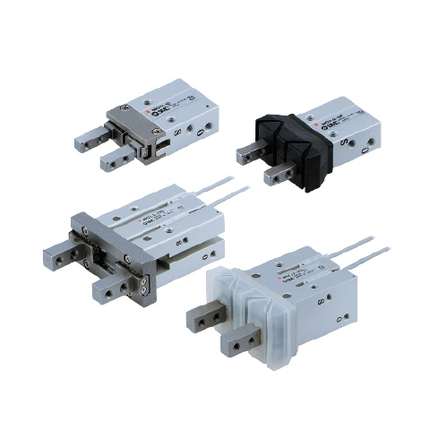

SMC MHZ2-16C3 — MHZ2 Series Air Gripper, Parallel Opening, Closing Linear Guide Parallel Type. This code specifies 16mm bore, without auto switch.
Specification — MHZ2-16C3
| Bore |
16mm |
| Body option |
Basic |
| Auto switch |
Without auto switch |
| Fluid |
Air |
| Port thread |
M |
| Min. operating pressure |
0.25 MPa |
| Max. operating pressure |
0.7 MPa |
| Lubrication |
Non-lube |
| Weight |
115 g |
Specification values above are for model code MHZ2-16C3 as published by SMC. A change of one character in the suffix gives a different part, so order by the full code.
How to order
About the SMC MHZ2 series
- High rigidity and high accuracy by adopting a linear guide
- Dust-proof and drip-proof structure
- Dust cover material can be selected
Supply from Korea
Genuine SMC, sourced through Korean distribution and shipped from Korea by FedEx International Priority with export packing and commercial documents. Need a different stroke, switch or suffix? Send the full model code and quantity and we will quote it.
