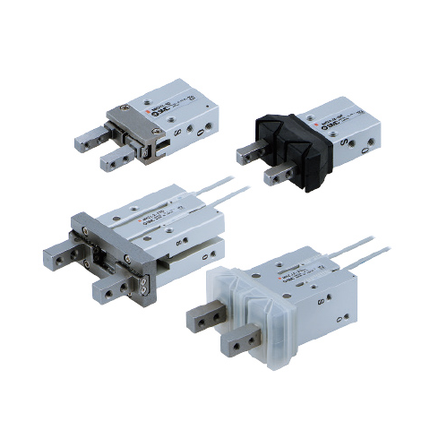

SMC MHZL2 Series Parallel Type Air Gripper, Long Stroke Type , MHZL2-10D-X4

Description

OVERVIEW




  • High rigidity and high accuracy by adopting a linear guide
  • Dust-proof and drip-proof structure
  • Dust cover material can be selected



Configuration Options







Type Special function Electrical entry Indicator light Wiring (Output) Load voltage Auto switch model Lead wire length (m) * Applicable model Pre-wired connector Applicable load
Electrical entry direction 0.5 (Nil) 1 (M) 3 (L) 5 (Z) ø10 ø16 ø20 ø25
DC AC Perpendicular In-line
Solid state auto switch - Grommet Yes 3-wire (NPN) 24 V 5V, 12 V - M9NV M9N O O O O O O O O O IC circuit Relay, PLC
F8N - O - O O - O O O -
3-wire (PNP) M9PV M9P O O O O O O O O O
F8P - O - O O - O O O -
2-wire 12 V M9BV M9B O O O O O O O O O -
F8B - O - O O - O O O -
Diagnosis (2-color indicator) 3-wire (NPN) 5 V, 12 V M9NWV M9NW O O O O O O O O O IC circuit
3-wire (PNP) M9PWV M9PW O O O O O O O O O
2-wire 12 V M9BWV M9BW O O O O O O O O O -
Water resistant (2-color indicator) 3-wire (NPN) 5 V, 12 V M9NAV** M9NA** O O O O O O O O O IC circuit
3-wire (PNP) M9PAV** M9PA** O O O O O O O O O
2-wire 12 V M9BAV** M9BA** O O O O O O O O O -

Specification — MHZL2-10D-X4

Bore 10mm
Action Double acting
Body option Basic
Auto switch Without auto switch
Fluid Air
Port thread M
Min. operating pressure 0.2 MPa
Max. operating pressure 0.7 MPa
Lubrication Non-lube
Weight 60 g

Specification values above are for model code MHZL2-10D-X4 as published by SMC. A change of one character in the suffix gives a different part, so order by the full code.

Product form

OVERVIEW High rigidity and high accuracy by adopting a linear guide Dust-proof and drip-proof structure Dust cover material can be... Read more

SKU: MHZL2-10D-X4

$196.49 Excl. VAT

    • Ships within 5–10 business days
    • Ships from South Korea
    • Export packing available
    • Worldwide shipping
    • Secure payments Paypal

    Description

    OVERVIEW




    • High rigidity and high accuracy by adopting a linear guide
    • Dust-proof and drip-proof structure
    • Dust cover material can be selected



    Configuration Options







    Type Special function Electrical entry Indicator light Wiring (Output) Load voltage Auto switch model Lead wire length (m) * Applicable model Pre-wired connector Applicable load
    Electrical entry direction 0.5 (Nil) 1 (M) 3 (L) 5 (Z) ø10 ø16 ø20 ø25
    DC AC Perpendicular In-line
    Solid state auto switch - Grommet Yes 3-wire (NPN) 24 V 5V, 12 V - M9NV M9N O O O O O O O O O IC circuit Relay, PLC
    F8N - O - O O - O O O -
    3-wire (PNP) M9PV M9P O O O O O O O O O
    F8P - O - O O - O O O -
    2-wire 12 V M9BV M9B O O O O O O O O O -
    F8B - O - O O - O O O -
    Diagnosis (2-color indicator) 3-wire (NPN) 5 V, 12 V M9NWV M9NW O O O O O O O O O IC circuit
    3-wire (PNP) M9PWV M9PW O O O O O O O O O
    2-wire 12 V M9BWV M9BW O O O O O O O O O -
    Water resistant (2-color indicator) 3-wire (NPN) 5 V, 12 V M9NAV** M9NA** O O O O O O O O O IC circuit
    3-wire (PNP) M9PAV** M9PA** O O O O O O O O O
    2-wire 12 V M9BAV** M9BA** O O O O O O O O O -

    Specification — MHZL2-10D-X4

    Bore 10mm
    Action Double acting
    Body option Basic
    Auto switch Without auto switch
    Fluid Air
    Port thread M
    Min. operating pressure 0.2 MPa
    Max. operating pressure 0.7 MPa
    Lubrication Non-lube
    Weight 60 g

    Specification values above are for model code MHZL2-10D-X4 as published by SMC. A change of one character in the suffix gives a different part, so order by the full code.
