Description

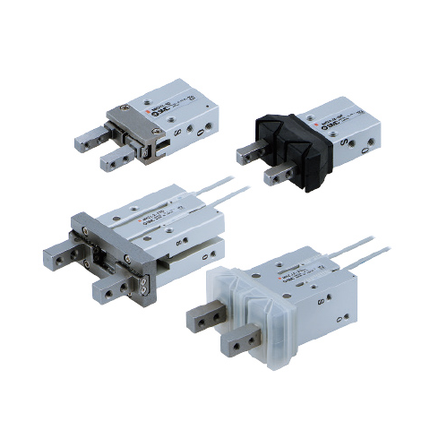

SMC MHZL2-10D3W — MHZL2 Series Parallel Type Air Gripper, Long Stroke Type. This code specifies 10mm bore, double acting, without auto switch.
Specification — MHZL2-10D3W
| Bore |
10mm |
| Action |
Double acting |
| Auto switch |
Without auto switch |
| Fluid |
Air |
| Port thread |
M |
| Min. operating pressure |
0.2 MPa |
| Max. operating pressure |
0.7 MPa |
| Lubrication |
Non-lube |
| Weight |
70 g |
Specification values above are for model code MHZL2-10D3W as published by SMC. A change of one character in the suffix gives a different part, so order by the full code.
How to order
About the SMC MHZL2 series
- High rigidity and high accuracy by adopting a linear guide
- Dust-proof and drip-proof structure
- Dust cover material can be selected
Supply from Korea
Genuine SMC, sourced through Korean distribution and shipped from Korea by FedEx International Priority with export packing and commercial documents. Need a different stroke, switch or suffix? Send the full model code and quantity and we will quote it.
