Description

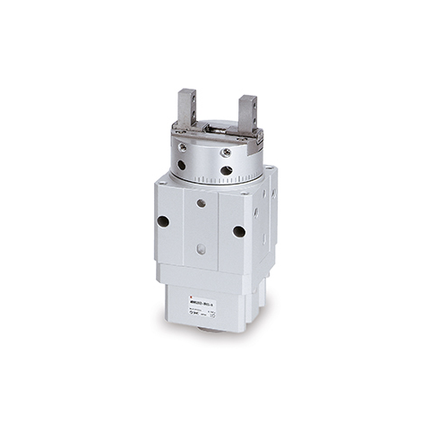

SMC MRHQ20C-90S-N — MRHQ Rotary Gripper Series, Parallel Type, 2 Finger. This code specifies 20mm bore, 90° rotation.
Specification — MRHQ20C-90S-N
| Fluid |
Air |
| Port size |
M5X0.8 |
| Port thread |
M |
| Min. operating pressure |
0.25 MPa |
| Max. operating pressure |
0.7 MPa |
| Allowable kinetic energy |
0.034 J |
| Weight |
1,000 g |
Specification values above are for model code MRHQ20C-90S-N as published by SMC. A change of one character in the suffix gives a different part, so order by the full code.
How to order
Series features
- Rotary Gripper.
- Size: 10, 16, 20, 25.
- Modular construction.
- Can be mounted from five directions: two ends and three sides of the body.
- Auto switch capable.
Supply from Korea
Genuine SMC, sourced through Korean distribution and shipped from Korea by FedEx International Priority with export packing and commercial documents. Need a different stroke, switch or suffix? Send the full model code and quantity and we will quote it.
