Description

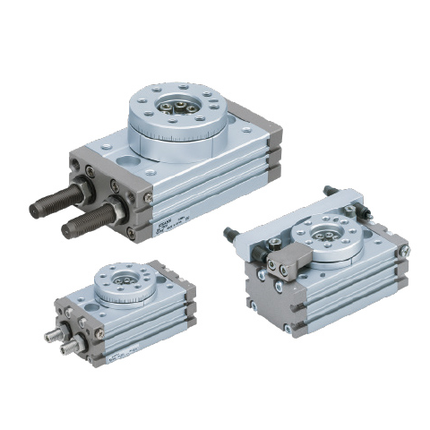

SMC MSQB7A-M9BZ — MSQ Series rotary table, rack and pinion. This code specifies 12 mm bore, built-in magnet.
Specification — MSQB7A-M9BZ
| Magnet |
Built-in magnet |
| Fluid |
Air |
| Port thread |
M |
| Min. operating pressure |
0.1 MPa |
| Max. operating pressure |
0.7 MPa |
| Lubrication |
Non-lube |
| Allowable kinetic energy |
0.006 J |
| Bore |
Φ12 mm |
| Weight |
376 g |
Specification values above are for model code MSQB7A-M9BZ as published by SMC. A change of one character in the suffix gives a different part, so order by the full code.
How to order
About the SMC MSQ series
- Integration of table and rotary actuator
- Attachment of angle adjustment mechanism
- Easy centering during load installation and body installation
- Available with built-in shock absorber and external absorber
Supply from Korea
Genuine SMC, sourced through Korean distribution and shipped from Korea by FedEx International Priority with export packing and commercial documents. Need a different stroke, switch or suffix? Send the full model code and quantity and we will quote it.
