Description

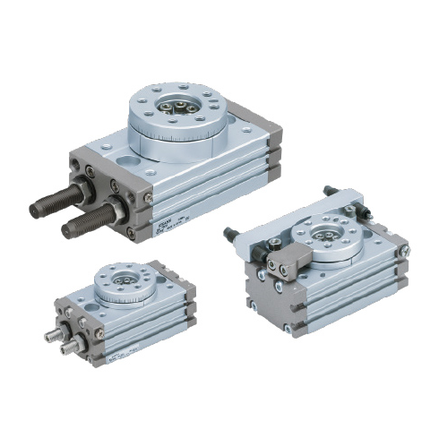

SMC MSQA10L5 — MSQ Series Rotary Table Rack and Pinion Type, High Precision. This code specifies 15 mm bore, built-in magnet.
Specification — MSQA10L5
| Magnet |
Built-in magnet |
| Fluid |
Air |
| Min. operating pressure |
0.2 MPa |
| Max. operating pressure |
1 MPa |
| Lubrication |
Non-lube |
| Allowable kinetic energy |
0.161 J |
| Bore |
Φ15 mm |
| Weight |
670 g |
Specification values above are for model code MSQA10L5 as published by SMC. A change of one character in the suffix gives a different part, so order by the full code.
How to order
About the SMC MSQ series
- integration of table and rotary actuator
- Attachment of angle adjustment mechanism
- Easy centering during load installation and body installation
- Available with built-in shock absorber and external absorber
Supply from Korea
Genuine SMC, sourced through Korean distribution and shipped from Korea by FedEx International Priority with export packing and commercial documents. Need a different stroke, switch or suffix? Send the full model code and quantity and we will quote it.
