Description

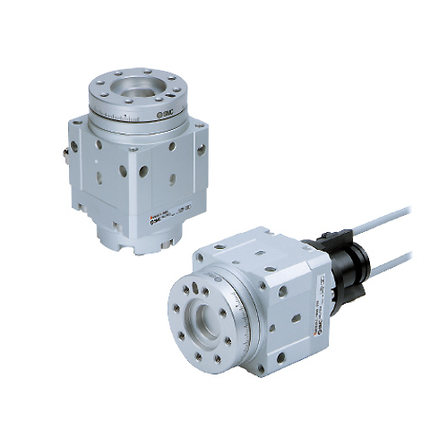

SMC MDSUA1-180S-97 — MSUA Series Rotary Table, Vane Type, High Precision. This code specifies 180° rotation.
Specification — MDSUA1-180S-97
| Port thread |
M |
| Min. operating pressure |
0.2 MPa |
| Max. operating pressure |
0.7 MPa |
| Proof pressure |
1.05 MPa |
| Lubrication |
Non-lube |
| Weight |
186 g |
Specification values above are for model code MDSUA1-180S-97 as published by SMC. A change of one character in the suffix gives a different part, so order by the full code.
How to order
About the SMC MSUA series
- Table and rotary actuator unified
- Angle adjustable swing end ±5° (double ±2.5°)
- Table surface runout: Within 0.03mm (MSUA)
- Connection port location: body side, axial direction selectable(with switch) For , body side only)
- The auto switch mounting position can be moved anywhere
- Auto switch mounting (MDSU series: MDSUA, MDSUB)
Supply from Korea
Genuine SMC, sourced through Korean distribution and shipped from Korea by FedEx International Priority with export packing and commercial documents. Need a different stroke, switch or suffix? Send the full model code and quantity and we will quote it.
