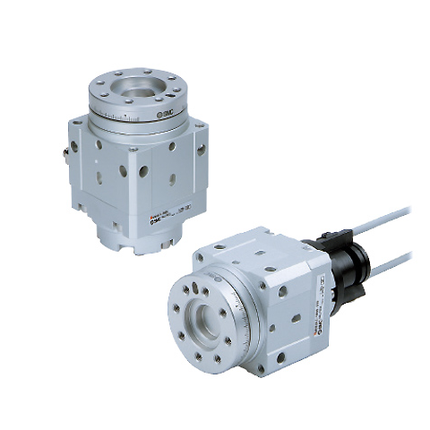

SMC MSUA Series Rotary Table, Vane Type, High Precision, MDSUA20-180S-T79L

Description

OVERVIEW



  • Table and rotary actuator unified
  • Angle adjustable swing end ±5° (double ±2.5°)
  • Table surface runout: Within 0.03mm (MSUA)
  • Connection port location: body side, axial direction selectable
    (with switch) For , body side only)
  • The auto switch mounting position can be moved anywhere
  • Auto switch mounting (MDSU series: MDSUA, MDSUB)



Configuration Options



1 With auto switch D Built-in auto switch magnet
2 Nominal size (Torque) 1 MSUA 1
3 MSUA 3
7 MSUA 7
10 MSUA20
3 Rotating angle 90 90°
180 180°
4 Connection port location Nil Side ported
E Axial ported
5 Auto switch Nil Without auto switch (built-in magnet)
6 Electrical entry/Lead wire length Nil Grommet/Lead wire: 0.5 m
L Grommet/Lead wire: 3 m
Z Grommet/Lead wire: 5 m
C Connector/Lead wire: 0.5 m
CL Connector/Lead wire: 3 m
CN Connector/Without lead wire

Product form

OVERVIEW Table and rotary actuator unified Angle adjustable swing end ±5° (double ±2.5°) Table surface runout: Within 0.03mm (MSUA) Connection... Read more

SKU: MDSUA20-180S-T79L

$332.49 Excl. VAT

    • Ships within 5–10 business days
    • Ships from South Korea
    • Export packing available
    • Worldwide shipping
    • Secure payments Paypal

    Description

    OVERVIEW



    • Table and rotary actuator unified
    • Angle adjustable swing end ±5° (double ±2.5°)
    • Table surface runout: Within 0.03mm (MSUA)
    • Connection port location: body side, axial direction selectable
      (with switch) For , body side only)
    • The auto switch mounting position can be moved anywhere
    • Auto switch mounting (MDSU series: MDSUA, MDSUB)



    Configuration Options



    1 With auto switch D Built-in auto switch magnet
    2 Nominal size (Torque) 1 MSUA 1
    3 MSUA 3
    7 MSUA 7
    10 MSUA20
    3 Rotating angle 90 90°
    180 180°
    4 Connection port location Nil Side ported
    E Axial ported
    5 Auto switch Nil Without auto switch (built-in magnet)
    6 Electrical entry/Lead wire length Nil Grommet/Lead wire: 0.5 m
    L Grommet/Lead wire: 3 m
    Z Grommet/Lead wire: 5 m
    C Connector/Lead wire: 0.5 m
    CL Connector/Lead wire: 3 m
    CN Connector/Without lead wire
