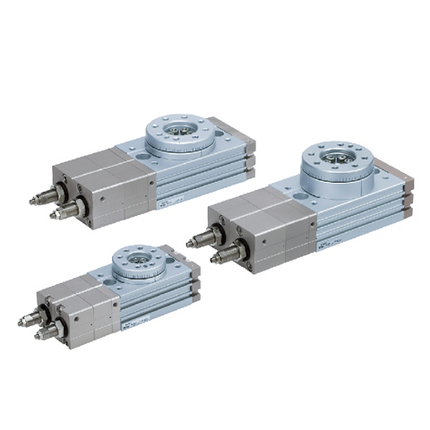

SMC MSZ Series 3 Position Rotary Table, Rack and Pinion Type, MSZB10A-A93VL

Description

OVERVIEW







Configuration Options




Type Special function Electrical entry Indicator light Wiring (Output) Load voltage Auto switch model Lead wire length (m) Pre-wired connector Applicable load
DC AC Perpendicular In-line 0.5 (Nil) 1 (M) 3 (L) 5 (Z)
Solid state auto switch - Grommet Yes 3-wire (NPN) 24 V 5 V, 12 V - M9NV M9N * * * * * IC circuit Relay, PLC
3-wire (PNP) M9PV M9P * * * * *
2-wire 12 V M9BV M9B * * * * * -
Diagnostic indication (2-color display) 3-wire (NPN) 5 V, 12 V M9NWV M9NW * * * * * IC circuit
3-wire (PNP) M9PWV M9PW * * * * *
2-wire 12 V M9BWV M9BW * * * * * -
Water resistant (2-color indication) 3-wire (NPN) 5 V, 12 V M9NAV*1 M9NA*1 * * * * * IC circuit
3-wire (PNP) M9PAV*1 M9PA*1 * * * * *
2-wire 12 V M9BAV*1 M9BA*1 * * * * * ??/span>
Reed auto switch - Grommet Yes 3-wire - 5 V - A96V A96 * - * - - IC circuit -
2-wire 24 V 12 V 100 V A93V*2 A93 * * * * - - Relay, PLC
No 100 V or less A90V A90 * - * - - IC circuit



Specification — MSZB10A-A93VL

Magnet Built-in magnet
Fluid Air
Port thread M
Min. operating pressure 0.2 MPa
Max. operating pressure 1 MPa
Lubrication Non-lube
Allowable kinetic energy 0.007 J
Weight 760 g

Specification values above are for model code MSZB10A-A93VL as published by SMC. A change of one character in the suffix gives a different part, so order by the full code.

Product form

OVERVIEW       Configuration Options   Type Special function Electrical entry Indicator light Wiring (Output) Load voltage Auto switch... Read more

SKU: MSZB10A-A93VL

$437.35 Excl. VAT

    • Ships within 5–10 business days
    • Ships from South Korea
    • Export packing available
    • Worldwide shipping
    • Secure payments Paypal
