Description

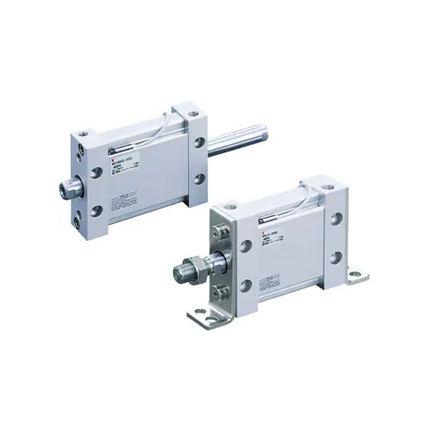

SMC MDUB32-10DMZ — MU Series Plate Cylinder, Double Acting, Single Rod. This code specifies 32mm bore, 10mm stroke, double acting, without auto switch.
Specification — MDUB32-10DMZ
| Stroke |
10mm |
| Auto switch |
Without auto switch |
| Port size |
1/8 |
| Fluid |
Air |
| Action |
Double acting |
| Cushion |
Rubber bumper |
| Rod end male thread |
M12X1.25 |
| Min. operating pressure |
0.05 MPa |
| Max. operating pressure |
0.7 MPa |
| Proof pressure |
1.05 MPa |
| Lubrication |
Non-lube |
| Fluid temp. min |
-10 °C |
| Fluid temp. max |
60 °C |
| Ambient temp. min |
-10 °C |
| Ambient temp. max |
60 °C |
| Piston speed min |
50 mm/s |
| Weight |
321 g |
Specification values above are for model code MDUB32-10DMZ as published by SMC. A change of one character in the suffix gives a different part, so order by the full code.
About the SMC MU series
- Space saving is possible due to the oval shape of the piston, and cylinders can be installed in multiple directions
- Small auto switches can be attached in 4 directions
- There is no auto switch protrusion
- Stroke up to 300mm is possible
- Auto switches are attached (MDU series: MDU, MDUW) )
Supply from Korea
Genuine SMC, sourced through Korean distribution and shipped from Korea by FedEx International Priority with export packing and commercial documents. Need a different stroke, switch or suffix? Send the full model code and quantity and we will quote it.
