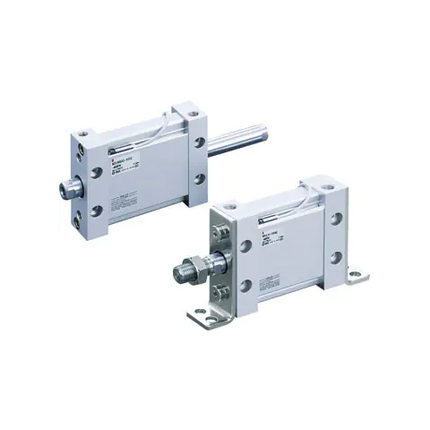

Name: SMC MU Series Plate Cylinder, Double Acting, Single Rod, MDUB32-30DMZ
Brand: SMC
SKU: MDUB32-30DMZ
Price: 71.18 USD
Availability: InStock

SMC MU Series Plate Cylinder, Double Acting, Single Rod, MDUB32-30DMZ

VendorSMC

Description

OVERVIEW

Space saving is possible due to the oval shape of the piston, and cylinders can be installed in multiple directions
Small auto switches can be attached in 4 directions
There is no auto switch protrusion
Stroke up to 300mm is possible
Auto switches are attached (MDU series: MDU, MDUW) )

Specification item	model symbol	Specification information
With auto switch	D	With auto switch
Mounting support type	B	Basic type
size	32	Piston area equivalent to ø32
Types of port screws	-	M screw, Rc
cylinder stroke	30	cylinder stroke 30mm
rod end shape	M	rod end male thread
auto switch	-	Without auto switch
Auto switch additional symbol	-	2 with or without

Specification — MDUB32-30DMZ

Stroke	30mm
Auto switch	Without auto switch
Port size	1/8
Fluid	Air
Action	Double acting
Cushion	Rubber bumper
Rod end male thread	M12X1.25
Min. operating pressure	0.05 MPa
Max. operating pressure	0.7 MPa
Proof pressure	1.05 MPa
Lubrication	Non-lube
Fluid temp. min	-10 °C
Fluid temp. max	60 °C
Ambient temp. min	-10 °C
Ambient temp. max	60 °C
Piston speed min	50 mm/s
Weight	377 g

Specification values above are for model code MDUB32-30DMZ as published by SMC. A change of one character in the suffix gives a different part, so order by the full code.
