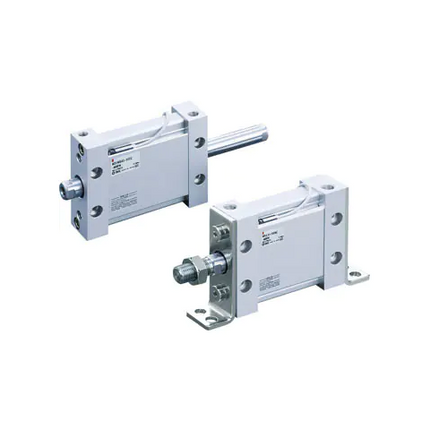

SMC MU Series Plate Cylinder, Double Acting, Single Rod, MDUB40-10DMZ-M9NVL

Description

OVERVIEW


  • Space saving is possible due to the oval shape of the piston, and cylinders can be installed in multiple directions
  • Small auto switches can be attached in 4 directions
  • There is no auto switch protrusion
  • Stroke up to 300mm is possible
  • Auto switches are attached (MDU series: MDU, MDUW) )



Specification item model symbol Specification information
With auto switch D With auto switch
Mounting support type B Basic type
size 40 Piston area equivalent to ø40
Types of port screws - M screw, Rc
cylinder stroke 10 cylinder stroke 10mm
rod end shape M rod end male thread
auto switch M9NVL Solid-state auto switch, grommet, with light, 3-wire type (NPN), vertical entry, 3 m lead wire, applied voltage: DC5V, 12V, 24V (DC4.5 to 28V)
Auto switch additional symbol - 2 with or without

Product form

OVERVIEW Space saving is possible due to the oval shape of the piston, and cylinders can be installed in multiple... Read more

SKU: MDUB40-10DMZ-M9NVL

$197.21 Excl. VAT

    • Quick delivery worldwide
    • Satisfied or refunded
    • Secure payments Paypal

      Description

      OVERVIEW


      • Space saving is possible due to the oval shape of the piston, and cylinders can be installed in multiple directions
      • Small auto switches can be attached in 4 directions
      • There is no auto switch protrusion
      • Stroke up to 300mm is possible
      • Auto switches are attached (MDU series: MDU, MDUW) )



      Specification item model symbol Specification information
      With auto switch D With auto switch
      Mounting support type B Basic type
      size 40 Piston area equivalent to ø40
      Types of port screws - M screw, Rc
      cylinder stroke 10 cylinder stroke 10mm
      rod end shape M rod end male thread
      auto switch M9NVL Solid-state auto switch, grommet, with light, 3-wire type (NPN), vertical entry, 3 m lead wire, applied voltage: DC5V, 12V, 24V (DC4.5 to 28V)
      Auto switch additional symbol - 2 with or without
