Description

OVERVIEW

Space saving is possible due to the oval shape of the piston, and cylinders can be installed in multiple directions
Small auto switches can be attached in 4 directions
There is no auto switch protrusion
Stroke up to 300mm is possible
Auto switches are attached (MDU series: MDU, MDUW) )

Specification item	model symbol	Specification information
With auto switch	D	With auto switch
Mounting support type	B	Basic type
size	40	Piston area equivalent to ø40
Types of port screws	-	M screw, Rc
cylinder stroke	10	cylinder stroke 10mm
rod end shape	-	Rod end female thread
auto switch	A93	Reed auto switch, grommet, with light, 2-wire type, lateral entry, lead wire 0.5 m, applied voltage: DC24V, AC100V
Auto switch additional symbol	-	2 with or without

Product form

OVERVIEW Space saving is possible due to the oval shape of the piston, and cylinders can be installed in multiple... Read more

SKU: MDUB40-10DZ-A93

$157.39 Excl. VAT

Space saving is possible due to the oval shape of the piston, and cylinders can be installed in multiple directions
Small auto switches can be attached in 4 directions
There is no auto switch protrusion
Stroke up to 300mm is possible
Auto switches are attached (MDU series: MDU, MDUW) )

Specification item	model symbol	Specification information
With auto switch	D	With auto switch
Mounting support type	B	Basic type
size	40	Piston area equivalent to ø40
Types of port screws	-	M screw, Rc
cylinder stroke	10	cylinder stroke 10mm
rod end shape	-	Rod end female thread
auto switch	A93	Reed auto switch, grommet, with light, 2-wire type, lateral entry, lead wire 0.5 m, applied voltage: DC24V, AC100V
Auto switch additional symbol	-	2 with or without

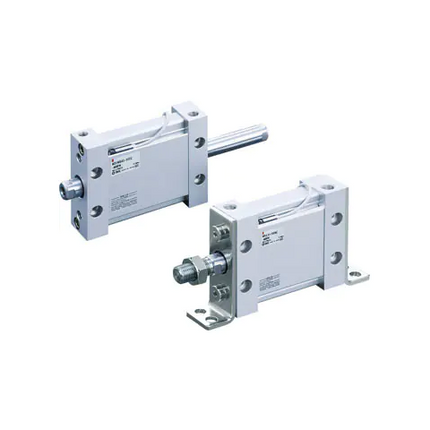

Name: SMC MU Series Plate Cylinder, Double Acting, Single Rod, MDUB40-10DZ-A93
Brand: SMC
SKU: MDUB40-10DZ-A93
Price: 157.39 USD
