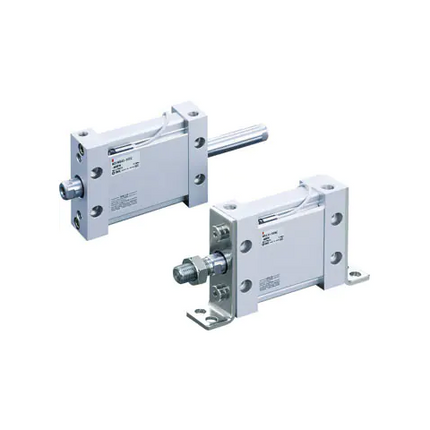

SMC MU Series Plate Cylinder, Double Acting, Single Rod, MDUD50-100DMZ-A93L

Description

OVERVIEW


  • Space saving is possible due to the oval shape of the piston, and cylinders can be installed in multiple directions
  • Small auto switches can be attached in 4 directions
  • There is no auto switch protrusion
  • Stroke up to 300mm is possible
  • Auto switches are attached (MDU series: MDU, MDUW) )



Specification item model symbol Specification information
With auto switch D With auto switch
Mounting support type D Double clevis type
size 50 Piston area equivalent to ø50
Types of port screws - M screw, Rc
cylinder stroke 100 cylinder stroke 100mm
rod end shape M rod end male thread
auto switch A93L Reed auto switch, grommet, with light, 2-wire type, side entry, lead wire 3 m, applied voltage: DC24V, AC100V
Auto switch additional symbol - 2 with or without

Product form

OVERVIEW Space saving is possible due to the oval shape of the piston, and cylinders can be installed in multiple... Read more

SKU: MDUD50-100DMZ-A93L

$239.88 Excl. VAT

    • Quick delivery worldwide
    • Satisfied or refunded
    • Secure payments Paypal

      Description

      OVERVIEW


      • Space saving is possible due to the oval shape of the piston, and cylinders can be installed in multiple directions
      • Small auto switches can be attached in 4 directions
      • There is no auto switch protrusion
      • Stroke up to 300mm is possible
      • Auto switches are attached (MDU series: MDU, MDUW) )



      Specification item model symbol Specification information
      With auto switch D With auto switch
      Mounting support type D Double clevis type
      size 50 Piston area equivalent to ø50
      Types of port screws - M screw, Rc
      cylinder stroke 100 cylinder stroke 100mm
      rod end shape M rod end male thread
      auto switch A93L Reed auto switch, grommet, with light, 2-wire type, side entry, lead wire 3 m, applied voltage: DC24V, AC100V
      Auto switch additional symbol - 2 with or without
