Description

OVERVIEW

Space saving is possible due to the oval shape of the piston, and cylinders can be installed in multiple directions
Small auto switches can be attached in 4 directions
There is no auto switch protrusion
Stroke up to 300mm is possible
Auto switches are attached (MDU series: MDU, MDUW) )

Specification item	model symbol	Specification information
With auto switch	D	With auto switch
Mounting support type	F	Rod side flange type
size	40	Piston area equivalent to ø40
Types of port screws	-	M screw, Rc
cylinder stroke	20	cylinder stroke 20mm
rod end shape	M	rod end male thread
auto switch	-	Without auto switch
Auto switch additional symbol	-	2 with or without

Product form

OVERVIEW Space saving is possible due to the oval shape of the piston, and cylinders can be installed in multiple... Read more

SKU: MDUF40-20DMZ

$116.62 Excl. VAT

Space saving is possible due to the oval shape of the piston, and cylinders can be installed in multiple directions
Small auto switches can be attached in 4 directions
There is no auto switch protrusion
Stroke up to 300mm is possible
Auto switches are attached (MDU series: MDU, MDUW) )

Specification item	model symbol	Specification information
With auto switch	D	With auto switch
Mounting support type	F	Rod side flange type
size	40	Piston area equivalent to ø40
Types of port screws	-	M screw, Rc
cylinder stroke	20	cylinder stroke 20mm
rod end shape	M	rod end male thread
auto switch	-	Without auto switch
Auto switch additional symbol	-	2 with or without

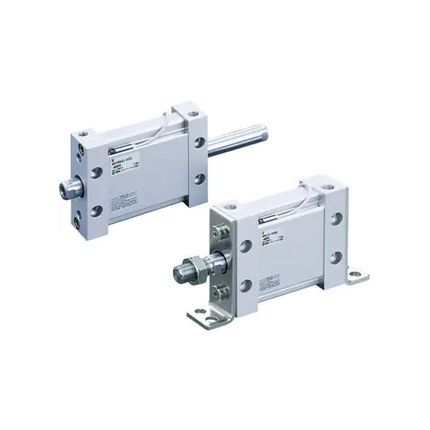

Name: SMC MU Series Plate Cylinder, Double Acting, Single Rod, MDUF40-20DMZ
Brand: SMC
SKU: MDUF40-20DMZ
Price: 116.62 USD
