Description

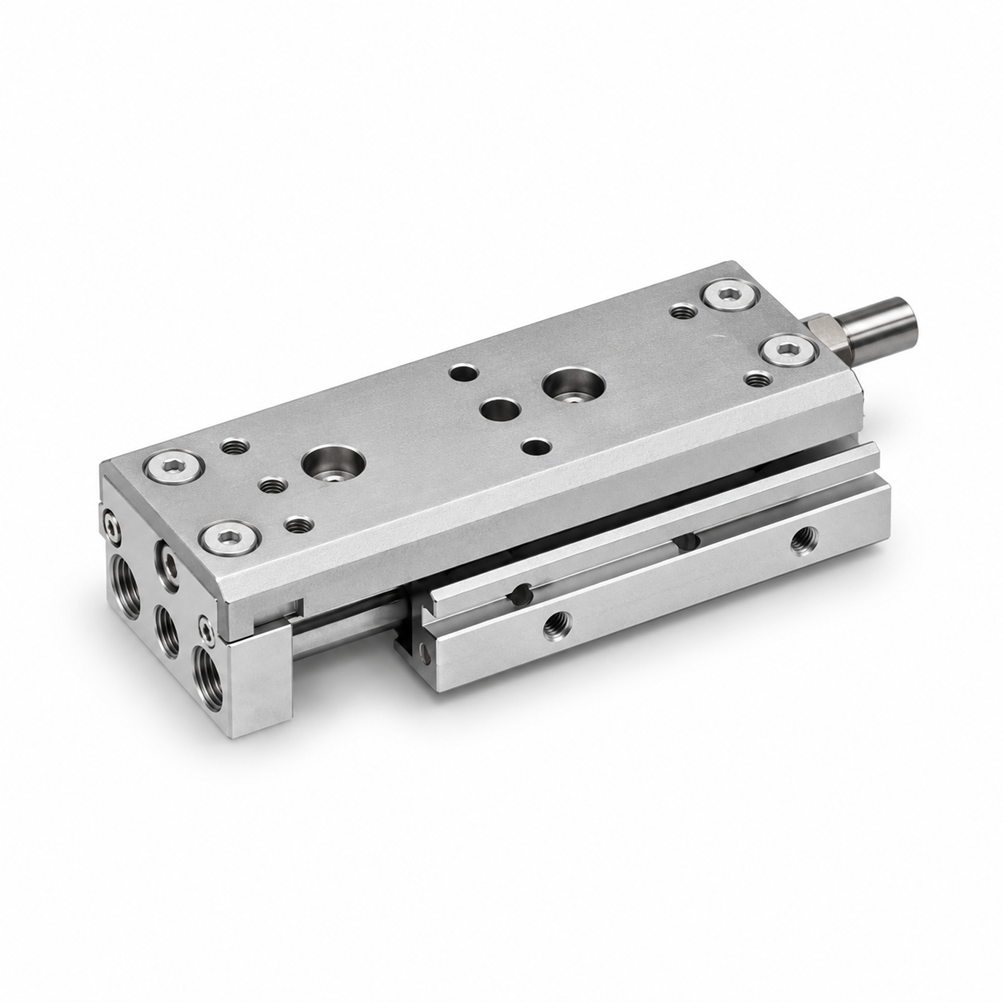

SMC MXQ20A-125ZA — genuine SMC pneumatic component from the MXQA series.
Specification — MXQ20A-125ZA
| Auto switch |
Without auto switch |
| Magnet |
Built-in magnet |
| Mounting |
Basic |
| Port thread |
M |
| Port size |
M5X0.8 |
| Fluid |
Air |
| Action |
Double acting |
| Min. operating pressure |
0.2 MPa |
| Max. operating pressure |
0.7 MPa |
| Proof pressure |
1.05 MPa |
| Fluid temp. min |
-10 °C |
| Fluid temp. max |
60 °C |
| Ambient temp. min |
-10 °C |
| Ambient temp. max |
60 °C |
| Piston speed min |
50 mm/s |
| Piston speed max |
300 mm/s |
| Weight |
2,000 g |
This code is built from auto switch Without auto switch, magnet Built-in magnet, mounting Basic, port thread M. SMC suffixes carry size, thread, cushion and switch options, so a single character changes the part — order by the full code MXQ20A-125ZA.
Supply from Korea
Korean SMC distribution holds deep stock on this series, so common codes move quickly. Rarer suffixes are confirmed in writing before the order proceeds.
Related codes
Other variants we carry in this series: MXQ20A-20ZB, MXQ20A-50ZB-M9BL, MXQ20A-50Z-M9B, MXQ20A-50Z-M9BL, MXQ20A-50Z-M9BW, MXQ20A-75ZB. Send the code and quantity and we will confirm price and lead time.
