Description

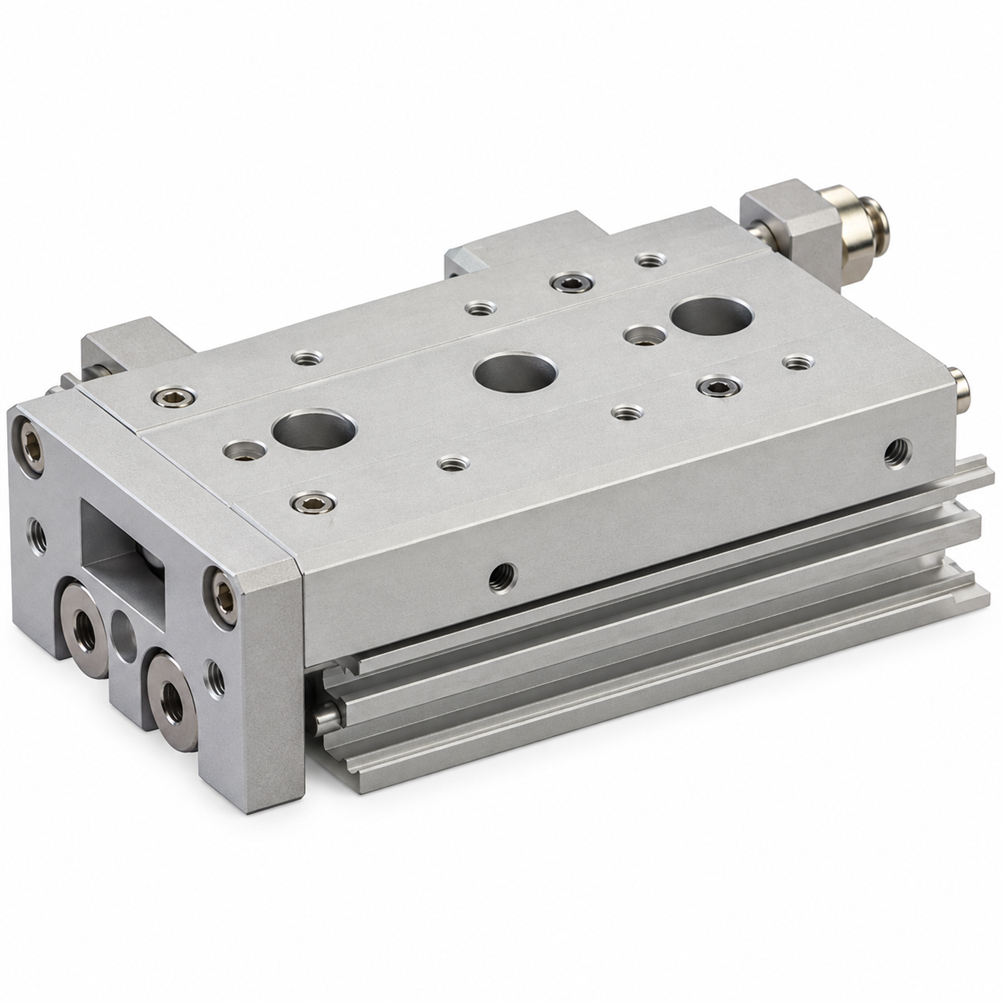

SMC MXS8-30 — genuine SMC pneumatic component from the MXS series.
Specification — MXS8-30
| Bore |
8mm |
| Stroke |
30mm |
| Auto switch |
Without auto switch |
| Magnet |
Built-in magnet |
| Mounting |
Basic |
| Port size |
M5X0.8 |
| Fluid |
Air |
| Action |
Double acting |
| Min. operating pressure |
0.15 MPa |
| Max. operating pressure |
0.7 MPa |
| Proof pressure |
1.05 MPa |
| Fluid temp. min |
-10 °C |
| Fluid temp. max |
60 °C |
| Ambient temp. min |
-10 °C |
| Ambient temp. max |
60 °C |
| Piston speed min |
50 mm/s |
| Weight |
190 g |
This code is built from bore 8mm, stroke 30mm, auto switch Without auto switch, magnet Built-in magnet. SMC suffixes carry size, thread, cushion and switch options, so a single character changes the part — order by the full code MXS8-30.
Supply from Korea
Stocked and shipped from Gyeonggi-do, Korea. Standard variants leave within a few working days; made-to-order suffixes are confirmed before processing.
Related codes
Other variants we carry in this series: MXS8-10-A93V, MXS8-10A-M9BW, MXS8-10A-M9NZ, MXS8-10AS-M9BW, MXS8-10AS-M9NV, MXS8-10AT-M9B. Send the code and quantity and we will confirm price and lead time.
