Description

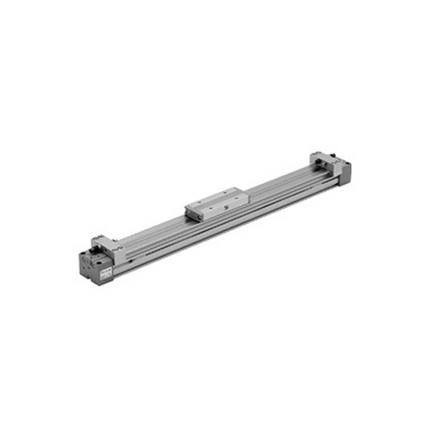

SMC MY1B10G-250A — MY1B Series mechanical joint rodless cylinder. This code specifies 10mm bore, 250 stroke, double acting, without auto switch.
Specification — MY1B10G-250A
| Bore |
10mm |
| Stroke |
250 |
| Auto switch |
Without auto switch |
| Action |
Double acting |
| Fluid |
Air |
| Min. operating pressure |
0.2 MPa |
| Max. operating pressure |
0.8 MPa |
| Proof pressure |
1.2 MPa |
| Lubrication |
Non-lube |
| Weight |
370 g |
Specification values above are for model code MY1B10G-250A as published by SMC. A change of one character in the suffix gives a different part, so order by the full code.
About the SMC MY1B series
- Five types of guide types are standardized.
- A wide selection is possible according to the load mass and required accuracy.
Supply from Korea
Genuine SMC, sourced through Korean distribution and shipped from Korea by FedEx International Priority with export packing and commercial documents. Need a different stroke, switch or suffix? Send the full model code and quantity and we will quote it.
