Description

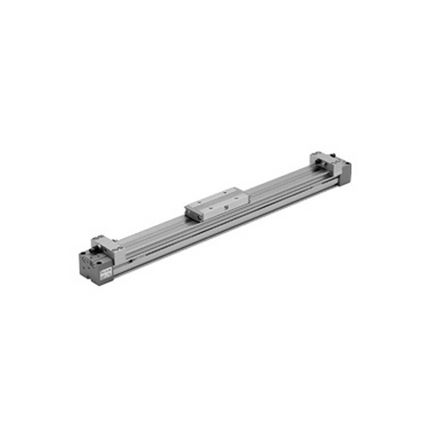

SMC MY1B16-400A — MY1B Series mechanical joint rodless cylinder. This code specifies 16mm bore, 400mm stroke, double acting, without auto switch.
Specification — MY1B16-400A
| Bore |
16mm |
| Stroke |
400mm |
| Auto switch |
Without auto switch |
| Action |
Double acting |
| Fluid |
Air |
| Min. operating pressure |
0.15 MPa |
| Max. operating pressure |
0.8 MPa |
| Proof pressure |
1.2 MPa |
| Lubrication |
Non-lube |
| Weight |
1,170 g |
Specification values above are for model code MY1B16-400A as published by SMC. A change of one character in the suffix gives a different part, so order by the full code.
About the SMC MY1B series
- Mechanical joint rodless cylinder
- Bore sizes: 16, 20, 25, 32, 40, 50, 63, 80, 100 *
- Strokes from 100mm through 5000mm depending upon bore size
- With one or two stroke adjusters with or without shocks
- Variety of switches and lead wire lengths
- Five types of guide types are standardized.
Supply from Korea
Genuine SMC, sourced through Korean distribution and shipped from Korea by FedEx International Priority with export packing and commercial documents. Need a different stroke, switch or suffix? Send the full model code and quantity and we will quote it.
