Description

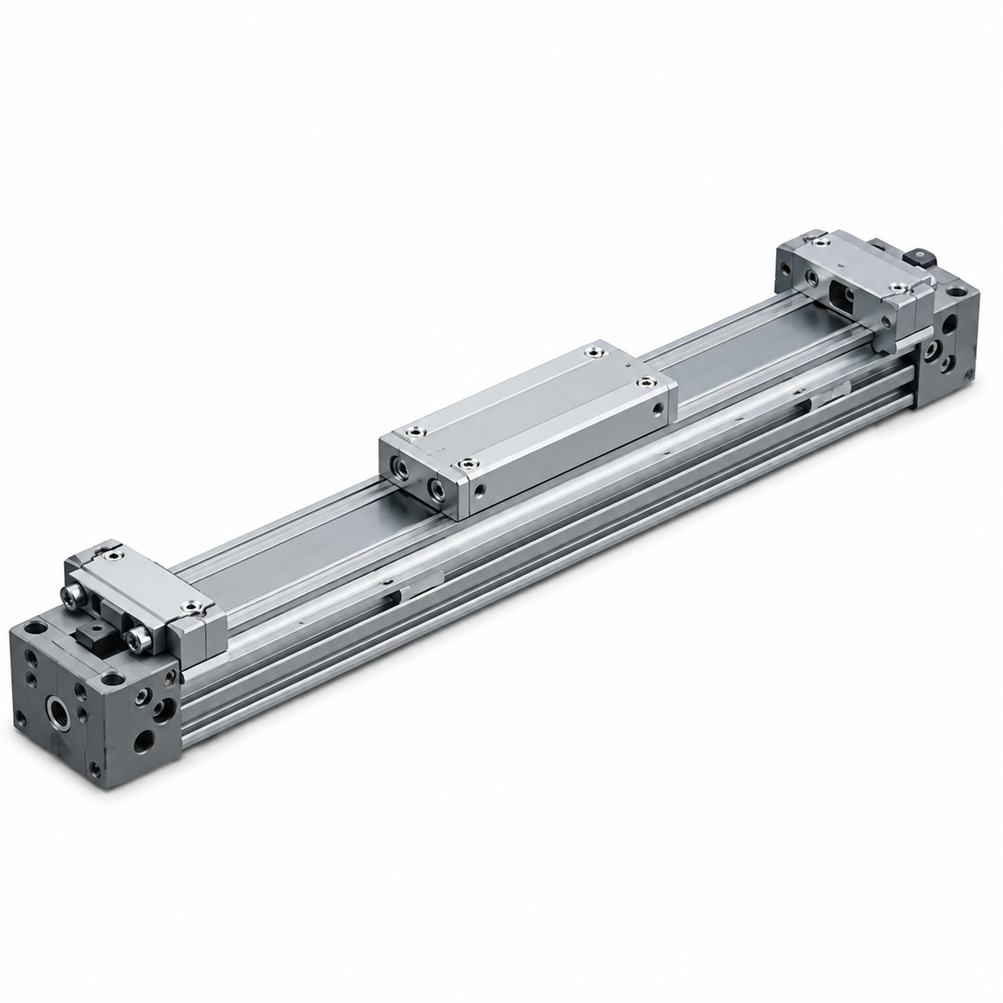

SMC MY1B25G-150LZ — genuine SMC pneumatic cylinder from the MY1B series.
Specification — MY1B25G-150LZ
| Bore |
25mm |
| Port thread |
Rc |
| Stroke |
150 |
| Auto switch |
Without auto switch |
| Action |
Double acting |
| Fluid |
Air |
| Min. operating pressure |
0.1 MPa |
| Max. operating pressure |
0.8 MPa |
| Proof pressure |
1.2 MPa |
| Lubrication |
Non-lube |
| Weight |
1,670 g |
This code is built from bore 25mm, port thread Rc, stroke 150, auto switch Without auto switch. SMC suffixes carry size, thread, cushion and switch options, so a single character changes the part — order by the full code MY1B25G-150LZ.
Supply from Korea
Ships from Korea with export packing and commercial documents prepared as standard. Transit time is quoted with the order.
Related codes
Other variants we carry in this series: MY1B25G-350HZ, MY1B25G-350LZ, MY1B25G-350Z, MY1B25G-400HZ-A93L, MY1B25G-400LZ, MY1B25G-400Z. Send the code and quantity and we will confirm price and lead time.
