Description

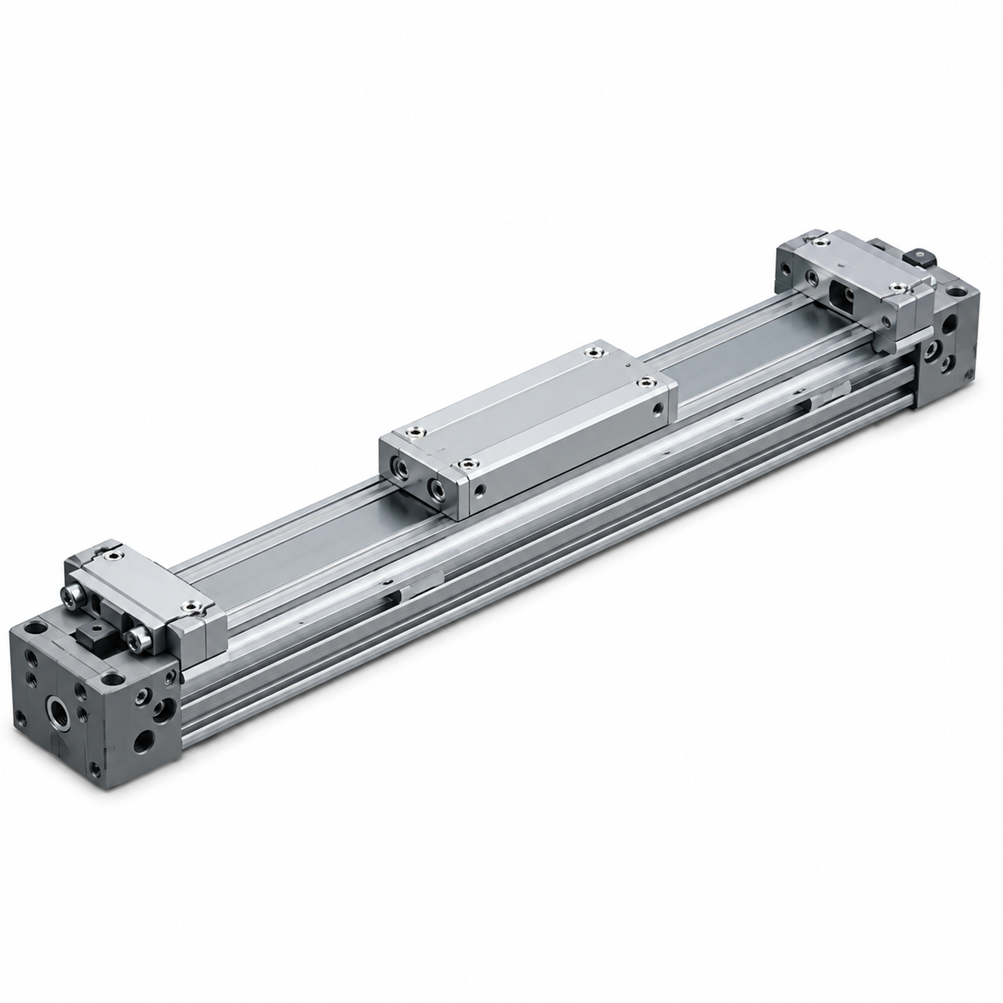

SMC MY1B25G-200LZ — genuine SMC pneumatic cylinder from the MY1B series.
Specification — MY1B25G-200LZ
| Bore |
25mm |
| Port thread |
Rc |
| Stroke |
200mm |
| Auto switch |
Without auto switch |
| Action |
Double acting |
| Fluid |
Air |
| Min. operating pressure |
0.1 MPa |
| Max. operating pressure |
0.8 MPa |
| Proof pressure |
1.2 MPa |
| Lubrication |
Non-lube |
| Weight |
1,000 g |
This code is built from bore 25mm, port thread Rc, stroke 200mm, auto switch Without auto switch. SMC suffixes carry size, thread, cushion and switch options, so a single character changes the part — order by the full code MY1B25G-200LZ.
Supply from Korea
Stocked and shipped from Gyeonggi-do, Korea. Standard variants leave within a few working days; made-to-order suffixes are confirmed before processing.
Related codes
Other variants we carry in this series: MY1B25G-350HZ, MY1B25G-350LZ, MY1B25G-350Z, MY1B25G-400HZ-A93L, MY1B25G-400LZ, MY1B25G-400Z. Send the code and quantity and we will confirm price and lead time.
