Description

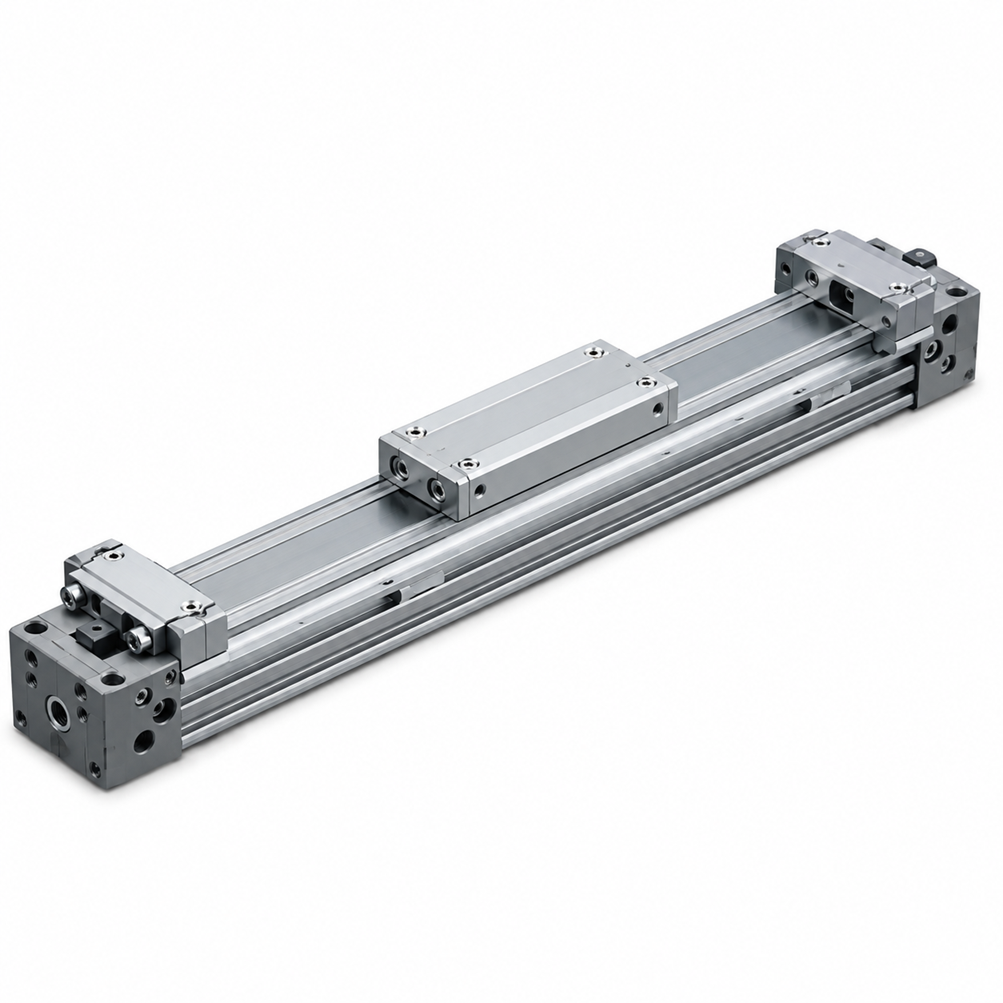

SMC MY1B25G-250L — genuine SMC pneumatic cylinder from the MY1B series.
Specification — MY1B25G-250L
| Bore |
25mm |
| Stroke |
250 |
| Auto switch |
Without auto switch |
| Action |
Double acting |
| Fluid |
Air |
| Min. operating pressure |
0.1 MPa |
| Max. operating pressure |
0.8 MPa |
| Proof pressure |
1.2 MPa |
| Lubrication |
Non-lube |
| Weight |
2,000 g |
This code is built from bore 25mm, stroke 250, auto switch Without auto switch, action Double acting. SMC suffixes carry size, thread, cushion and switch options, so a single character changes the part — order by the full code MY1B25G-250L.
Supply from Korea
Korean SMC distribution holds deep stock on this series, so common codes move quickly. Rarer suffixes are confirmed in writing before the order proceeds.
Related codes
Other variants we carry in this series: MY1B25G-350HZ, MY1B25G-350LZ, MY1B25G-350Z, MY1B25G-400HZ-A93L, MY1B25G-400LZ, MY1B25G-400Z. Send the code and quantity and we will confirm price and lead time.
