Description

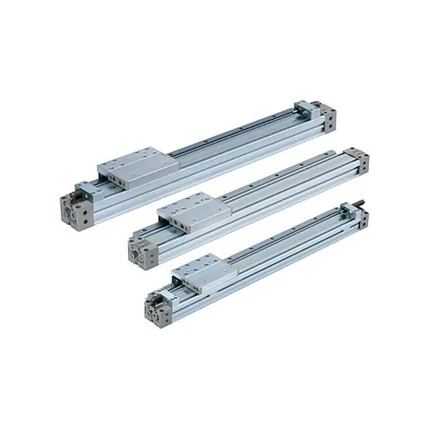

SMC MY1H10G-100H — MY1H Series Mechanical Joint Rodless Cylinder, Linear Guide Type. This code specifies 10mm bore, 100mm stroke, double acting.
Specification — MY1H10G-100H
| Bore |
10mm |
| Stroke |
100mm |
| Action |
Double acting |
| Fluid |
Air |
| Min. operating pressure |
0.2 MPa |
| Max. operating pressure |
0.8 MPa |
| Proof pressure |
1.2 MPa |
| Lubrication |
Non-lube |
| Fluid temp. min |
5 °C |
| Weight |
460 g |
Specification values above are for model code MY1H10G-100H as published by SMC. A change of one character in the suffix gives a different part, so order by the full code.
About the SMC MY1H series
- Stabilization of adsorption posture and improved releaseability
- Pad shape: flat groove attachment, bellows type lip groove attachment
- Mounting connection: male thread, female thread
- Vacuum entry direction: vertical, horizontal
- Vacuum entry port: male thread, female thread
- Buffer: none , yes [buffer stroke (mm): 10, 30, 50]
Supply from Korea
Genuine SMC, sourced through Korean distribution and shipped from Korea by FedEx International Priority with export packing and commercial documents. Need a different stroke, switch or suffix? Send the full model code and quantity and we will quote it.
