Name: SMC MY1H Series Mechanical Joint Rodless Cylinder, Linear Guide Type, MY1H25G-250LZ
Brand: SMC
SKU: MY1H25G-250LZ
Price: 1062.73 USD
Availability: InStock

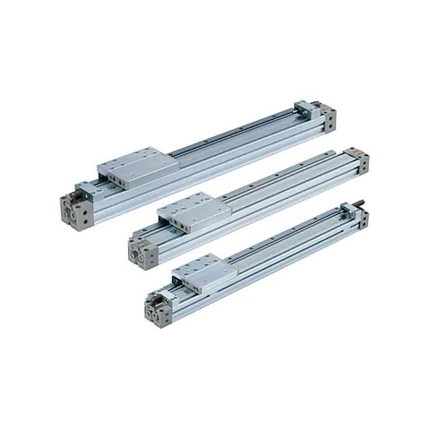

SMC MY1H Series Mechanical Joint Rodless Cylinder, Linear Guide Type, MY1H25G-250LZ

VendorSMC

Description

OVERVIEW

For long strokes with compact size and an integrated guide, the MY1 series rodless actuator provides an ideal solution. The MY1 mechanical joint rodless cylinder includes four standard models, which allow the appropriate bearing style to be selected in order to match the accuracy and load requirements of your application. If necessary, you can also combine the basic MY1 cylinder with an external guide in order to create a special engineered solution. Piping options can be selected according to the application. MY1 is available in 9 bore sizes from 16mm to 100mm. Standard strokes are available up to 2000mm with a 5000mm long stroke option on some bore sizes.

Stabilization of adsorption posture and improved releaseability
Pad shape: flat groove attachment, bellows type lip groove attachment
Mounting connection: male thread, female thread
Vacuum entry direction: vertical, horizontal
Vacuum entry port: male thread, female thread
Buffer: none , yes
　[buffer stroke (mm): 10, 30, 50]

Specification item	model symbol	Specification information
tube inner diameter	25	tube inner diameter 25mm
Types of port screws	-	Rc
Piping type	G	centralized piping
cylinder stroke	250	Cylinder stroke 250mm
Stroke adjustment unit symbol	L	Left: With shock absorber for L low load + adjustment bolt Right: With shock absorber for L low load + adjustment bolt
End-lock position	-	No End-Lock
auto switch	-	Without auto switch
Auto switch additional symbol	-	2 with or without
Custom made specifications	-	standard

Specification — MY1H25G-250LZ

Bore	25mm
Port thread	Rc
Stroke	250mm
Auto switch	Without auto switch
Action	Double acting
Fluid	Air
Min. operating pressure	0.1 MPa
Max. operating pressure	0.8 MPa
Proof pressure	1.2 MPa
Lubrication	Non-lube
Weight	3,810 g

Specification values above are for model code MY1H25G-250LZ as published by SMC. A change of one character in the suffix gives a different part, so order by the full code.
