Description

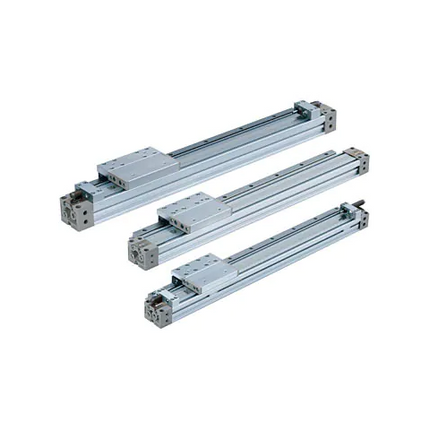

SMC MY1H32-300Z — MY1H Series Mechanical Joint Rodless Cylinder, Linear Guide Type. This code specifies 32mm bore, 300mm stroke, double acting, without auto switch.
Specification — MY1H32-300Z
| Bore |
32mm |
| Port thread |
Rc |
| Stroke |
300mm |
| Auto switch |
Without auto switch |
| Action |
Double acting |
| Fluid |
Air |
| Min. operating pressure |
0.1 MPa |
| Max. operating pressure |
0.8 MPa |
| Proof pressure |
1.2 MPa |
| Lubrication |
Non-lube |
| Weight |
7,130 g |
Specification values above are for model code MY1H32-300Z as published by SMC. A change of one character in the suffix gives a different part, so order by the full code.
About the SMC MY1H series
- Stabilization of adsorption posture and improved releaseability
- Pad shape: flat groove attachment, bellows type lip groove attachment
- Mounting connection: male thread, female thread
- Vacuum entry direction: vertical, horizontal
- Vacuum entry port: male thread, female thread
- Buffer: none , yes [buffer stroke (mm): 10, 30, 50]
Supply from Korea
Genuine SMC, sourced through Korean distribution and shipped from Korea by FedEx International Priority with export packing and commercial documents. Need a different stroke, switch or suffix? Send the full model code and quantity and we will quote it.
