Description

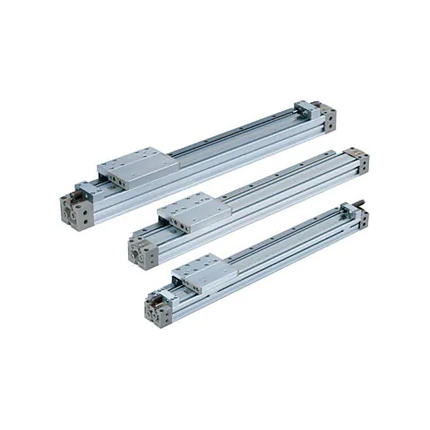

SMC MY1H40-400HZ — MY1H Series Mechanical Joint Rodless Cylinder, Linear Guide Type. This code specifies 40mm bore, 400mm stroke, double acting, without auto switch.
Specification — MY1H40-400HZ
| Bore |
40mm |
| Port thread |
Rc |
| Stroke |
400mm |
| Auto switch |
Without auto switch |
| Action |
Double acting |
| Fluid |
Air |
| Min. operating pressure |
0.1 MPa |
| Max. operating pressure |
0.8 MPa |
| Proof pressure |
1.2 MPa |
| Lubrication |
Non-lube |
| Weight |
10,800 g |
Specification values above are for model code MY1H40-400HZ as published by SMC. A change of one character in the suffix gives a different part, so order by the full code.
About the SMC MY1H series
- Possible to piping from 4 directions of the head cover
- Possible to respond to piping in the field according to the arrangement situation
- Easy adjustment of the cushion needle,improved workability as it is placed on the top surface
- Auto switch can be attached to any position (D-M9 type, D- A9 type)
- Longer service life by adsorption of dust seal band magnets
- Installation and performance are the same as conventional products, and weight is reduced
Supply from Korea
Genuine SMC, sourced through Korean distribution and shipped from Korea by FedEx International Priority with export packing and commercial documents. Need a different stroke, switch or suffix? Send the full model code and quantity and we will quote it.
