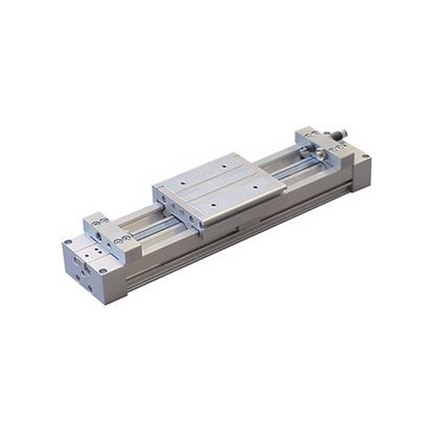

SMC MY1M16G-300 — MY1M Series mechanical joint rodless cylinder, Slide Bearing Guide Type. This code specifies 16mm bore, 300mm stroke, double acting, without auto switch.
Specification — MY1M16G-300
| Bore |
16mm |
| Stroke |
300mm |
| Auto switch |
Without auto switch |
| Action |
Double acting |
| Fluid |
Air |
| Min. operating pressure |
0.2 MPa |
| Max. operating pressure |
0.8 MPa |
| Proof pressure |
1.2 MPa |
| Lubrication |
Non-lube |
| Weight |
1,390 g |
Specification values above are for model code MY1M16G-300 as published by SMC. A change of one character in the suffix gives a different part, so order by the full code.
About the SMC MY1M series
- Five types of guide types are standardized
- A wide range of selections are possible according to the load mass and required accuracy
Supply from Korea
Genuine SMC, sourced through Korean distribution and shipped from Korea by FedEx International Priority with export packing and commercial documents. Need a different stroke, switch or suffix? Send the full model code and quantity and we will quote it.
