Description

OVERVIEW

For long strokes with compact size and an integrated guide, the MY1 series rodless actuator provides an ideal solution. The MY1 mechanical joint rodless cylinder includes four standard models, which allow the appropriate bearing style to be selected in order to match the accuracy and load requirements of your application. If necessary, you can also combine the basic MY1 cylinder with an external guide in order to create a special engineered solution. Piping options can be selected according to the application. MY1 is available in 9 bore sizes from 16mm to 100mm. Standard strokes are available up to 2000mm with a 5000mm long stroke option on some bore sizes.

Five types of guide types are standardized
A wide range of selections are possible according to the load mass and required accuracy

Specification item	model symbol	Specification information
tube inner diameter	50	tube inner diameter 50mm
Types of port screws	-	M thread (ø16 to ø20), Rc (ø25 to ø63)
Piping type	-	standard type
cylinder stroke	250
Stroke adjustment unit symbol	-	Left: no unit, right: no unit
auto switch	-	Without auto switch
Auto switch additional symbol	-	2 with or without
Custom made specifications	-	standard

Product form

OVERVIEW For long strokes with compact size and an integrated guide, the MY1 series rodless actuator provides an ideal solution.... Read more

SKU: MY1M50-250

$568.44 Excl. VAT

Quick delivery worldwide

Satisfied or refunded

Secure payments Paypal

Description

OVERVIEW

For long strokes with compact size and an integrated guide, the MY1 series rodless actuator provides an ideal solution. The MY1 mechanical joint rodless cylinder includes four standard models, which allow the appropriate bearing style to be selected in order to match the accuracy and load requirements of your application. If necessary, you can also combine the basic MY1 cylinder with an external guide in order to create a special engineered solution. Piping options can be selected according to the application. MY1 is available in 9 bore sizes from 16mm to 100mm. Standard strokes are available up to 2000mm with a 5000mm long stroke option on some bore sizes.

Five types of guide types are standardized
A wide range of selections are possible according to the load mass and required accuracy

Specification item	model symbol	Specification information
tube inner diameter	50	tube inner diameter 50mm
Types of port screws	-	M thread (ø16 to ø20), Rc (ø25 to ø63)
Piping type	-	standard type
cylinder stroke	250
Stroke adjustment unit symbol	-	Left: no unit, right: no unit
auto switch	-	Without auto switch
Auto switch additional symbol	-	2 with or without
Custom made specifications	-	standard

Reviews

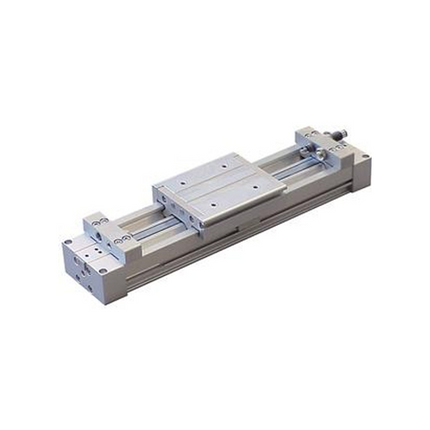

Name: SMC MY1M Series mechanical joint rodless cylinder, Slide Bearing Guide Type, MY1M50-250
Brand: SMC
SKU: MY1M50-250
Price: 568.44 USD

SMC MY1M Series mechanical joint rodless cylinder, Slide Bearing Guide Type, MY1M50-250
