Description

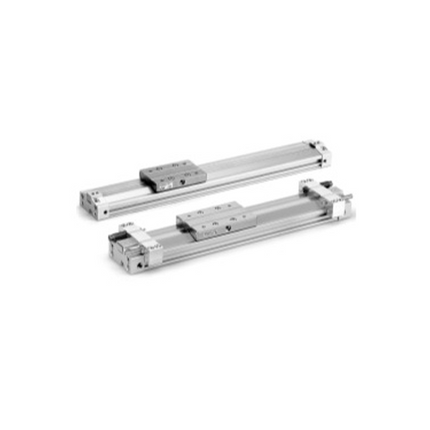

SMC MY3B16-500L — MY3A/3B Series Mechanical Joint Type Rodless Cylinder. This code specifies 16mm bore, 500mm stroke, double acting, without auto switch.
Specification — MY3B16-500L
| Bore |
16mm |
| Port thread |
Rc |
| Stroke |
500mm |
| Auto switch |
Without auto switch |
| Action |
Double acting |
| Fluid |
Air |
| Min. operating pressure |
0.2 MPa |
| Max. operating pressure |
0.8 MPa |
| Proof pressure |
1.2 MPa |
| Lubrication |
Non-lube |
| Weight |
880 g |
Specification values above are for model code MY3B16-500L as published by SMC. A change of one character in the suffix gives a different part, so order by the full code.
Series features
- Compared to the mechanical joint rodless cylinder MY1B series, a space-saving cylinder with a maximum reduction of 36% in height and a maximum of 140mm in length
Supply from Korea
Genuine SMC, sourced through Korean distribution and shipped from Korea by FedEx International Priority with export packing and commercial documents. Need a different stroke, switch or suffix? Send the full model code and quantity and we will quote it.
