Description

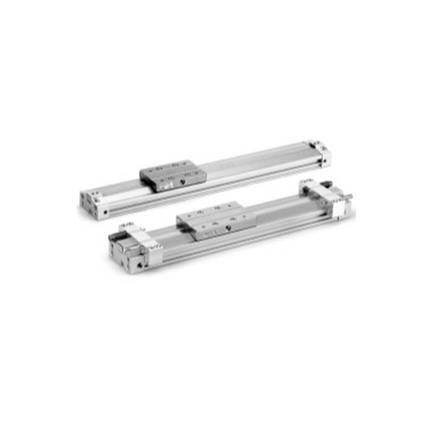

SMC MY3B32-250-M9BL — MY3A/3B Series Mechanical Joint Type Rodless Cylinder. This code specifies 32mm bore, 250 stroke, double acting.
Specification — MY3B32-250-M9BL
| Bore |
32mm |
| Port thread |
Rc |
| Stroke |
250 |
| Action |
Double acting |
| Fluid |
Air |
| Min. operating pressure |
0.15 MPa |
| Max. operating pressure |
0.8 MPa |
| Proof pressure |
1.2 MPa |
| Lubrication |
Non-lube |
| Weight |
2,000 g |
Specification values above are for model code MY3B32-250-M9BL as published by SMC. A change of one character in the suffix gives a different part, so order by the full code.
Series features
- Compared to the mechanical joint rodless cylinder MY1B series, a space-saving cylinder with a maximum reduction of 36% in height and a maximum of 140mm in length
Supply from Korea
Genuine SMC, sourced through Korean distribution and shipped from Korea by FedEx International Priority with export packing and commercial documents. Need a different stroke, switch or suffix? Send the full model code and quantity and we will quote it.
