Description

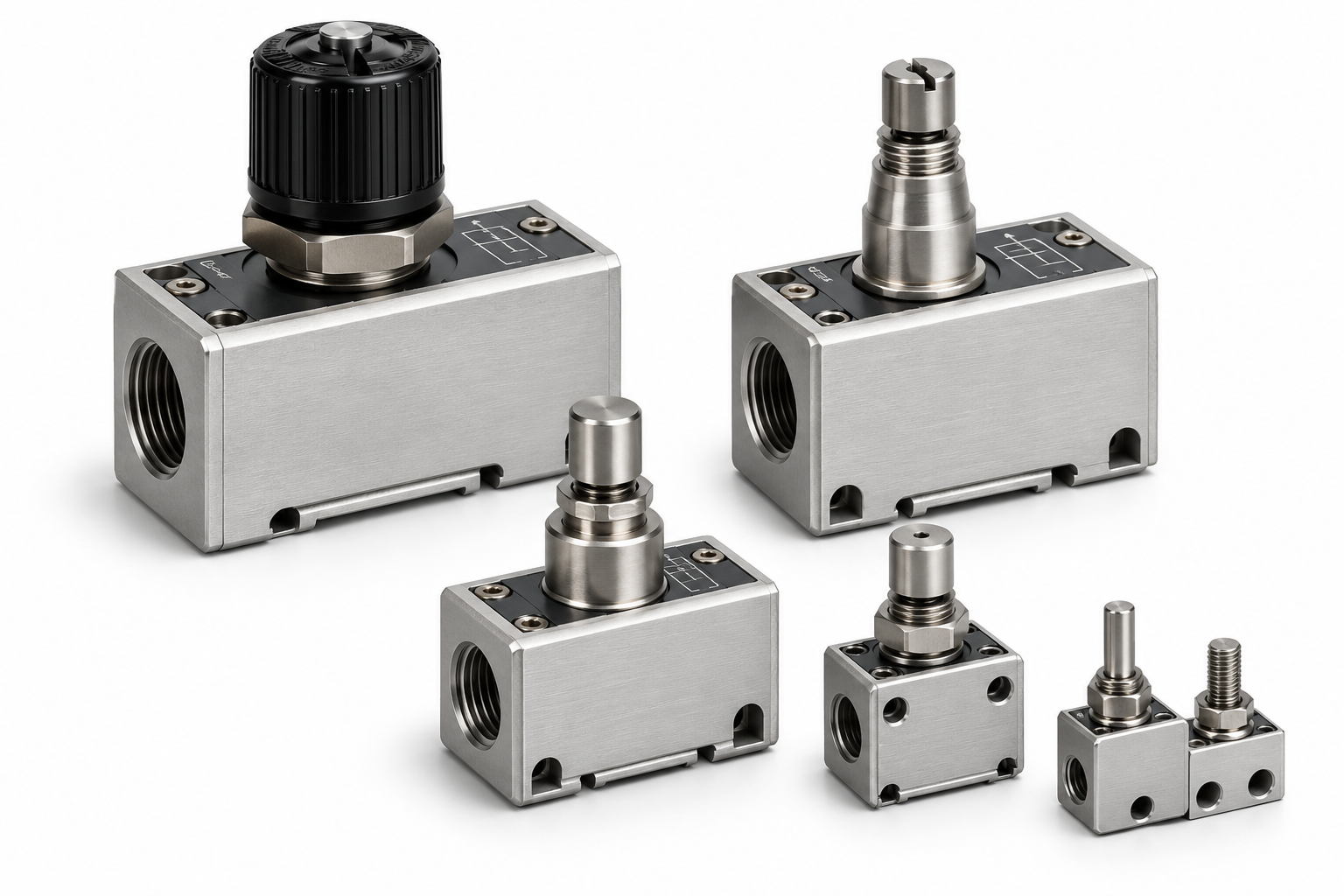

SMC AS4000-04 — AS series speed controller, in-line type, body size 4. Meter-out flow control with threaded ports, sized for large-bore cylinders where a push-in fitting type would choke the flow.
Specification — AS4000-04
| Type |
Speed controller, in-line, straight |
| Body size |
4 (1/2 class) |
| Port size |
Rc 1/2 |
| Control |
Meter-out |
| Fluid |
Air |
| Operating pressure |
0.05 to 1.0 MPa |
| Proof pressure |
1.5 MPa |
| Fluid temperature |
−5 to 60 °C |
| Free flow |
C = 4.6 dm³/(s·bar), b = 0.35 |
| Controlled flow |
C = 4.6 dm³/(s·bar), b = 0.20 |
| Lock nut |
Hexagon lock nut |
| Product weight |
205 g |
Why the in-line type
The body sits in the tube run rather than in the cylinder port, so the speed can be trimmed from a point the operator can reach. With Rc 1/2 ports and a free-flow C value of 4.6, it passes enough air for large-bore cylinders without becoming the restriction itself.
Typical use
Speed control on large cylinders, presses and gate actuators, and any circuit where the cylinder port is buried inside a machine frame.
Ordering
Order by the full code AS4000-04. The first digits give the body size and the suffix gives the port size, so one character changes the part. Need another port size in the AS4000 range, or the elbow and universal styles? Send the code and quantity and we will quote it.
