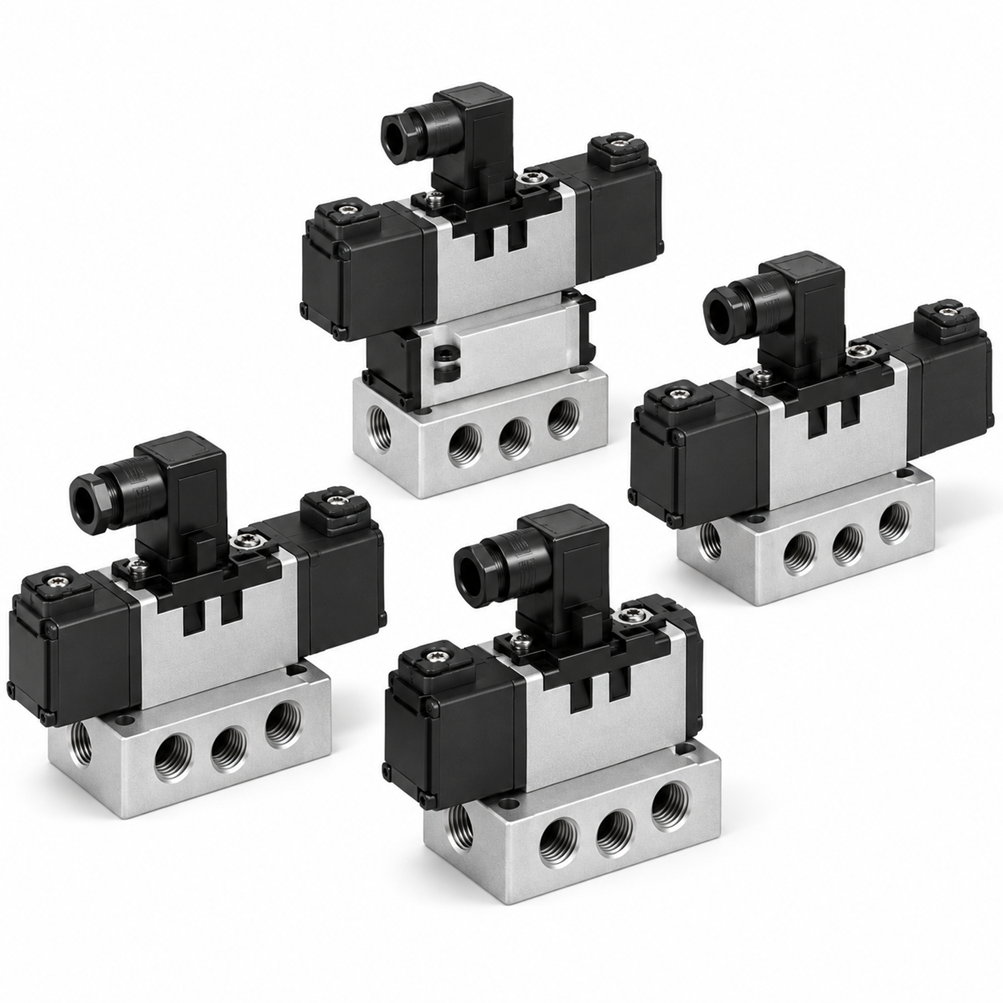

SMC VS7-6-FJG-D-3-Q — VS7-6 series solenoid valve to the ISO interface, size 1, 5-port three position exhaust centre with metal seal construction and double solenoid.
Specification — VS7-6-FJG-D-3-Q
| Series |
VS7-6 (ISO interface solenoid valve) |
| Interface |
ISO size 1 |
| Function |
5/3, exhaust centre |
| Actuation |
Double solenoid |
| Seal |
Metal seal |
| Product weight |
730 g |
Exhaust centre
With both solenoids off the spool centres and both cylinder ports vent to atmosphere. The cylinder goes slack, so the mechanism can be pushed by hand — which is what a setter needs during teaching and what a maintenance technician needs before working on a jig. It also means a vertical load will fall, so this centre type belongs on horizontal or restrained axes, not on a lift.
Exhaust centre or closed centre
FJG is exhaust centre (C.SC.); FHG is closed centre (C.CH.), which traps air on both sides and holds the piston in place. Same body, same price band, opposite behaviour when power is lost — confirm which the circuit needs before ordering.
Why the ISO interface matters
The mounting face, port positions and bolt pattern are fixed by the standard, so a size 1 valve from any manufacturer bolts onto the same subplate. The valve can be replaced without touching the piping.
Ordering
Order by the full code VS7-6-FJG-D-3-Q. Coil voltage, centre type, electrical entry and pilot arrangement are all in the suffix. Subplates and manifold bases are quoted separately.
Supply from Korea
Genuine SMC, stocked and shipped from Gyeonggi-do, Korea, with export packing and commercial documents prepared as standard.
