Description

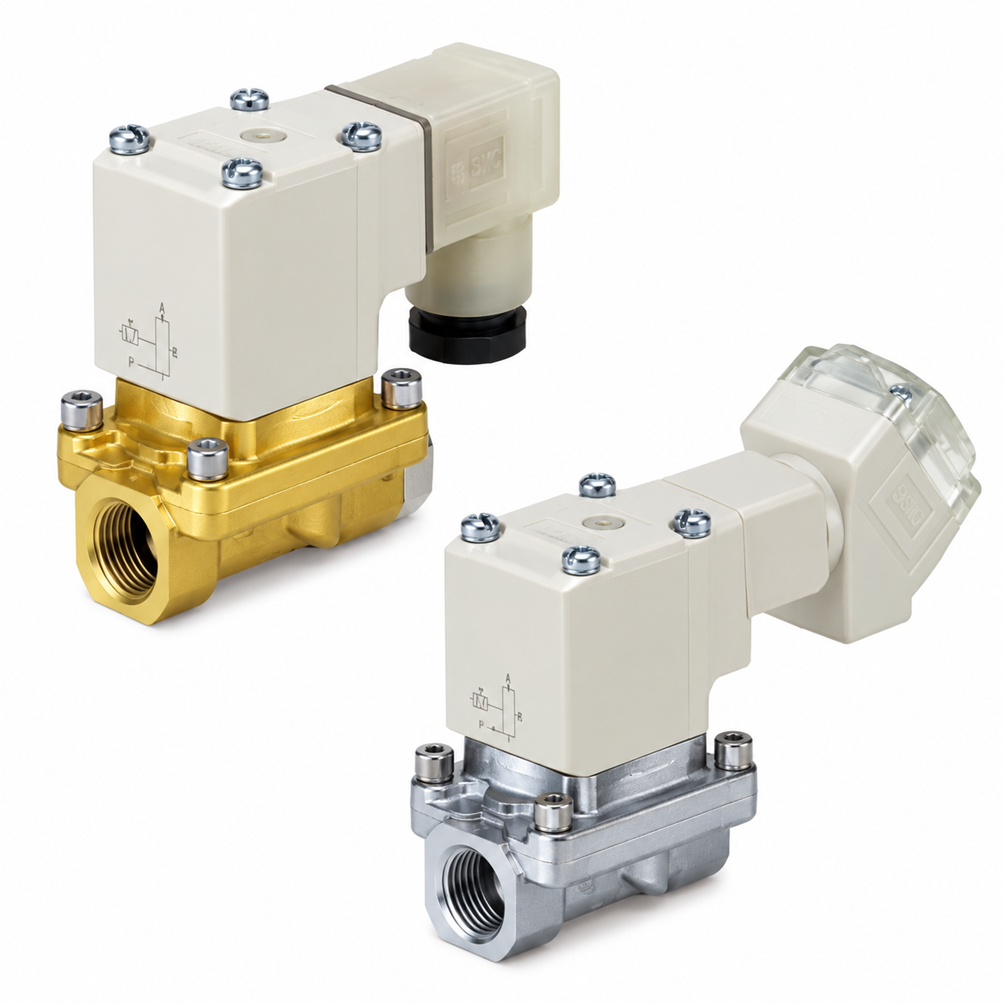

SMC VXZ2B2FZ2AXB — VXZ series pilot operated 2-port solenoid valve for water, built to open and close at zero differential pressure. IP65 enclosure, suitable for air, water, hot water, oil and hot oil.
Specification — VXZ2B2FZ2AXB
| Series |
VXZ (zero differential pressure, pilot operated 2-port) |
| Operation |
Pilot operated, works from 0 MPa differential |
| Fluids |
Air, water, hot water, oil, hot oil |
| Body materials available |
Aluminium, resin, C37 brass, stainless steel |
| Enclosure |
IP65 |
| Product weight |
750 g |
Why zero differential pressure matters
An ordinary pilot operated valve needs a minimum pressure difference across it to lift the diaphragm — typically 0.02 MPa or more. On a gravity-fed tank line, a recirculating loop, or any circuit that has to open with no head, such a valve simply will not move. The VXZ uses a mechanically linked pilot so it opens from zero, which makes it the right choice for drain lines, tank outlets and low pressure water circuits.
Fluid and body material
The series covers hot water and hot oil as well as cold service, and the body can be specified in aluminium, resin, brass or stainless steel to suit the fluid. Resin bodies are also available with one-touch fittings, which saves threading on plant water lines.
Typical use
Cooling water supply and return, tank drain and fill, coolant circuits, and hot water lines on process equipment.
Ordering
Order by the full code VXZ2B2FZ2AXB. Body material, seal, port size, coil voltage and electrical entry are all in the suffix, and the seal has to match the fluid and its temperature — tell us the fluid, temperature and line pressure and we will confirm the right variant.
Supply from Korea
Genuine SMC, stocked and shipped from Gyeonggi-do, Korea, with export packing and commercial documents prepared as standard.
